06EM450 Carlyle Compressor

06E RECIPROCATING COMPRESSOR

Carrier Carlyle 06EM450 Compressor

Reciprocating Compressor

Carlyle compressors consistently meet and exceed the demands of challenging environments, providing the most reliable refrigeration in the world.

3 to 15 Nominal HP
8 to 41 Nominal Cfm
Available Voltages : 208/230-3-60, 460-3-60, 575-3-60

Physical Data

Model Nominal
HP		 Displ.CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06EM450 (R134A) 15 50.3 4 2 1/8 1 1/8 430 14
06EM450 (R404A/R507) 15 50.3 4 2 1/8 1 1/8 430 14
06EM450 (R407A) 15 50.3 4 2 1/8 1 1/8 430 14

Product Description

  • Reciprocating compressors can be applied in high, medium, and low-temperature applications.
  • Carlyle compressors are working quietly and efficiently in supermarkets, computer rooms, manufacturing plants, on board ships and over the road.
  • We have applied our technological capabilities to bring you compressors that use alternative, environmentally safe refrigerants, while still meeting your need for reliable, efficient operation.

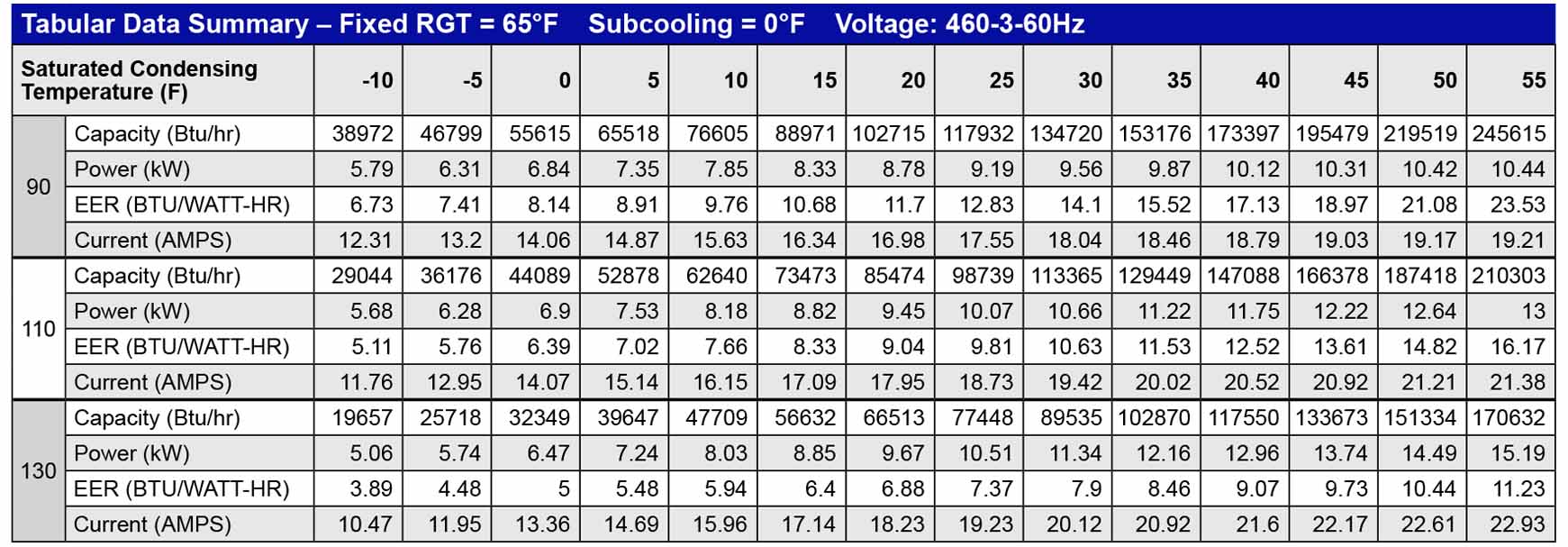

R134a - Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz

Carrier Carlyle 06EM450 Compressor R404A/R507

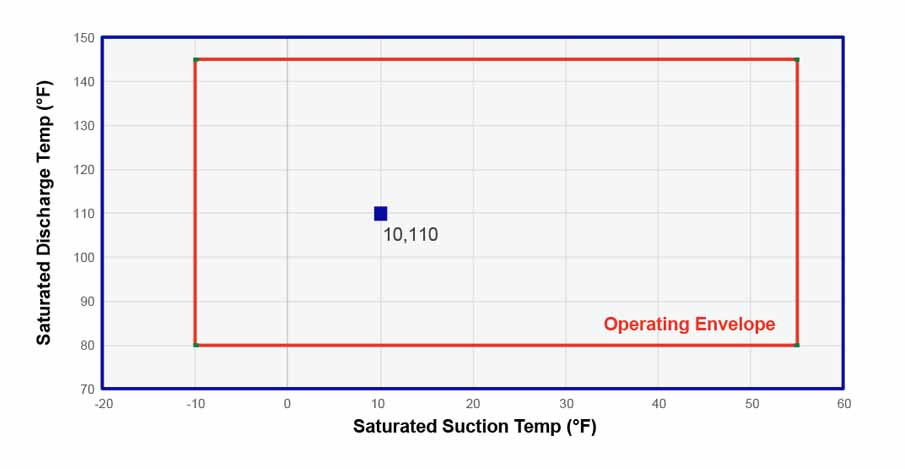

Carrier Carlyle 06EM450 operating envelop R404A/R507

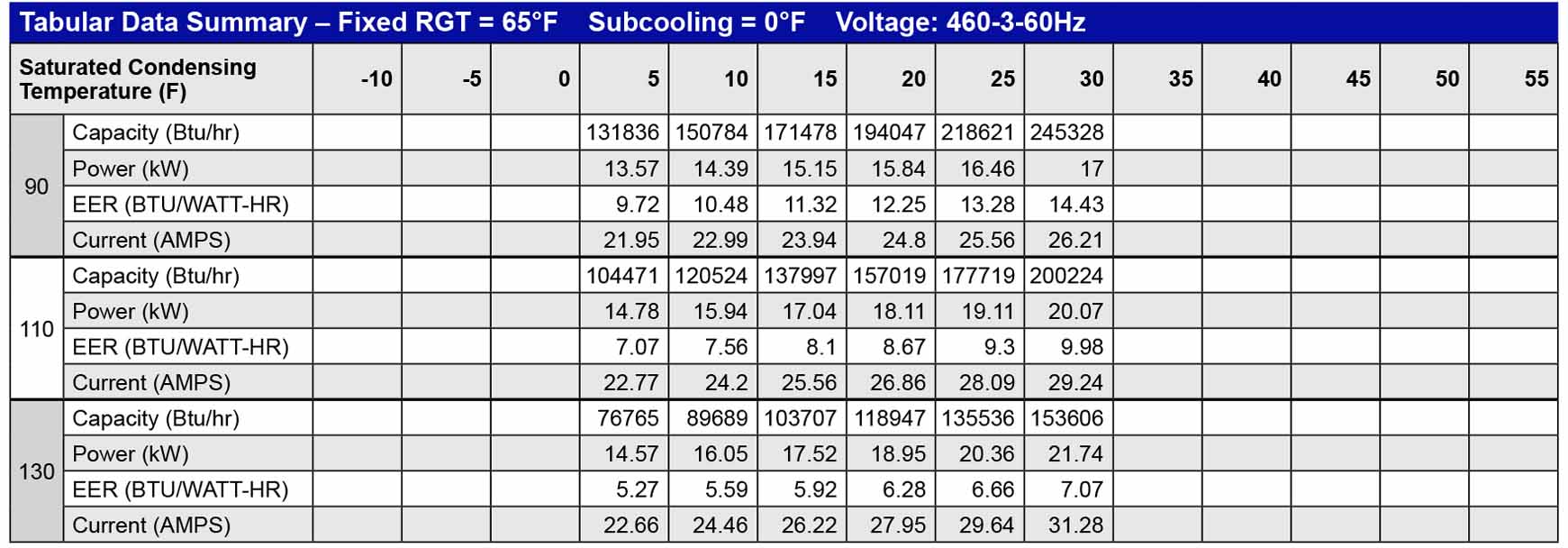

R404A/R507 - Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz

Carrier Carlyle 06EM450 Compressor R404A/R507

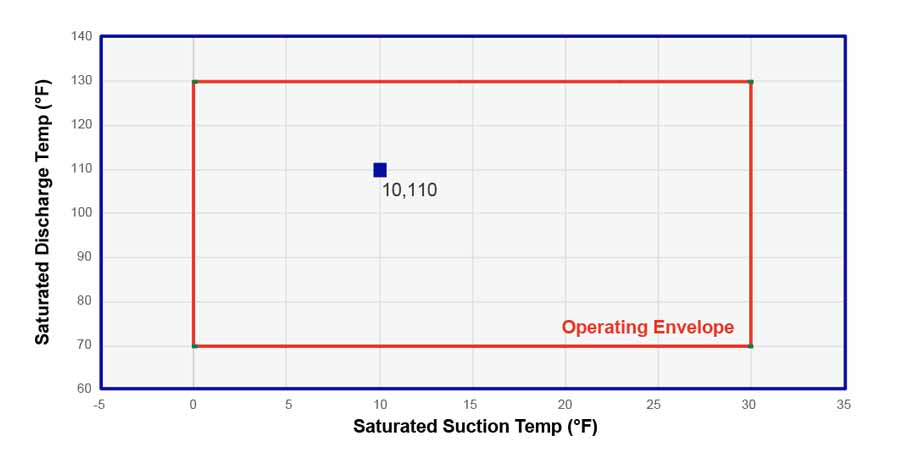

Carrier Carlyle 06EM450 operating envelop R404A/R507

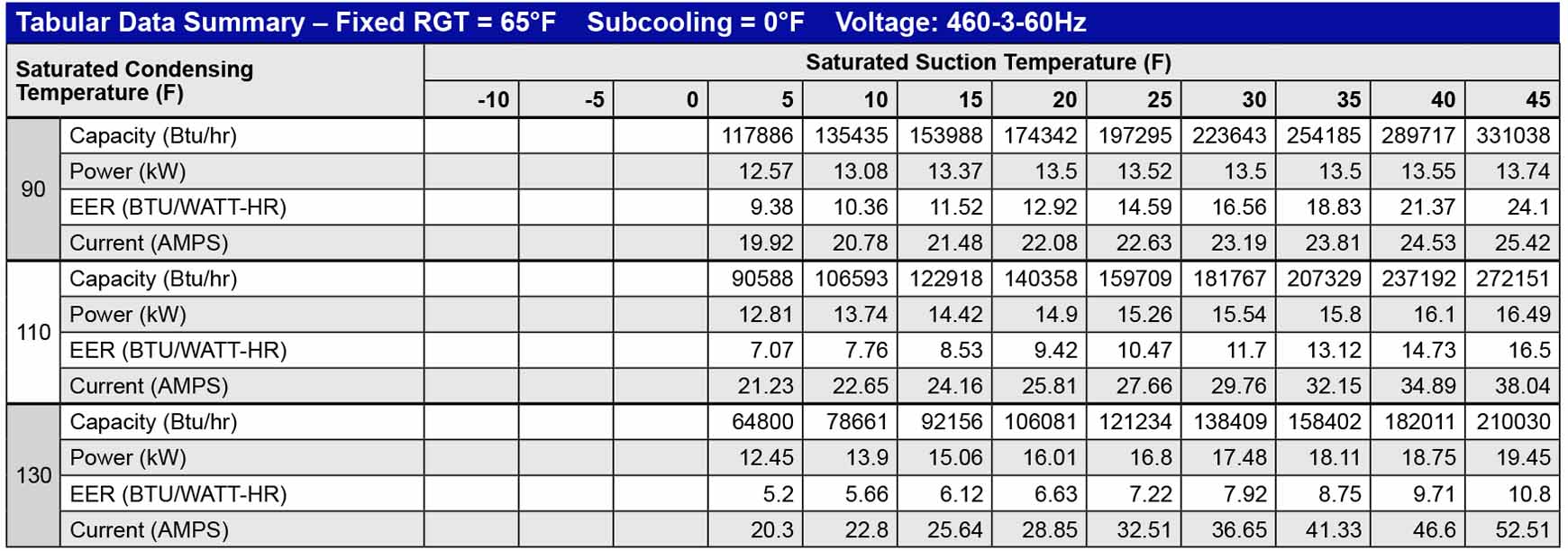

R407A - Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz

Carrier Carlyle 06EM450 Compressor R407A

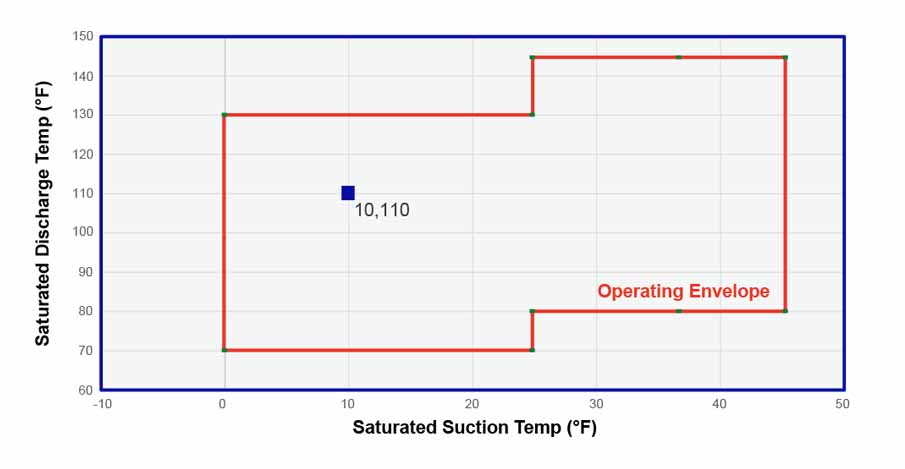

Carrier Carlyle 06EM450 operating envelop R407A

Drawings

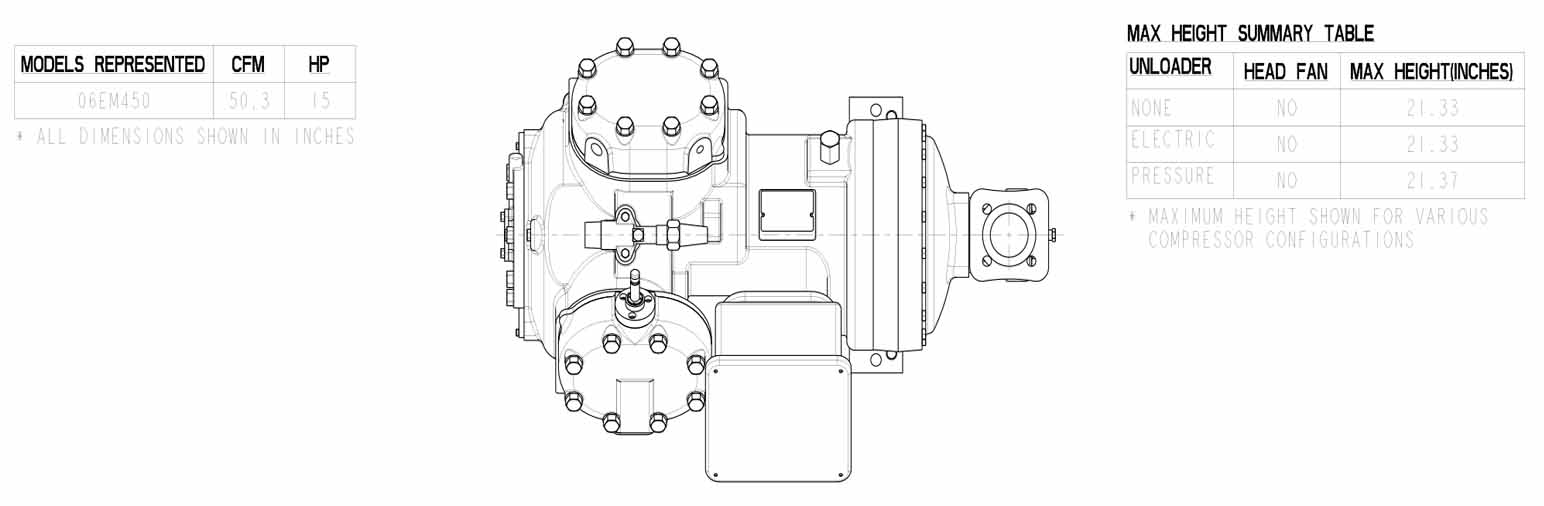

Carrier Carlyle 06EM450 drawings
Carrier Carlyle 06EM450 drawings
