We Provides Compressor Units
sales@saharahvacr.com
Monday to Friday
5 to 30 Nominal HP
16 to 99 Nominal Cfm
| Size | Replacement Model Number | (HP) | Airflow @1750 RPM (cfm) | Number of Cylinders | Oil Change (pints) | Net Weight (lb) |
|---|---|---|---|---|---|---|

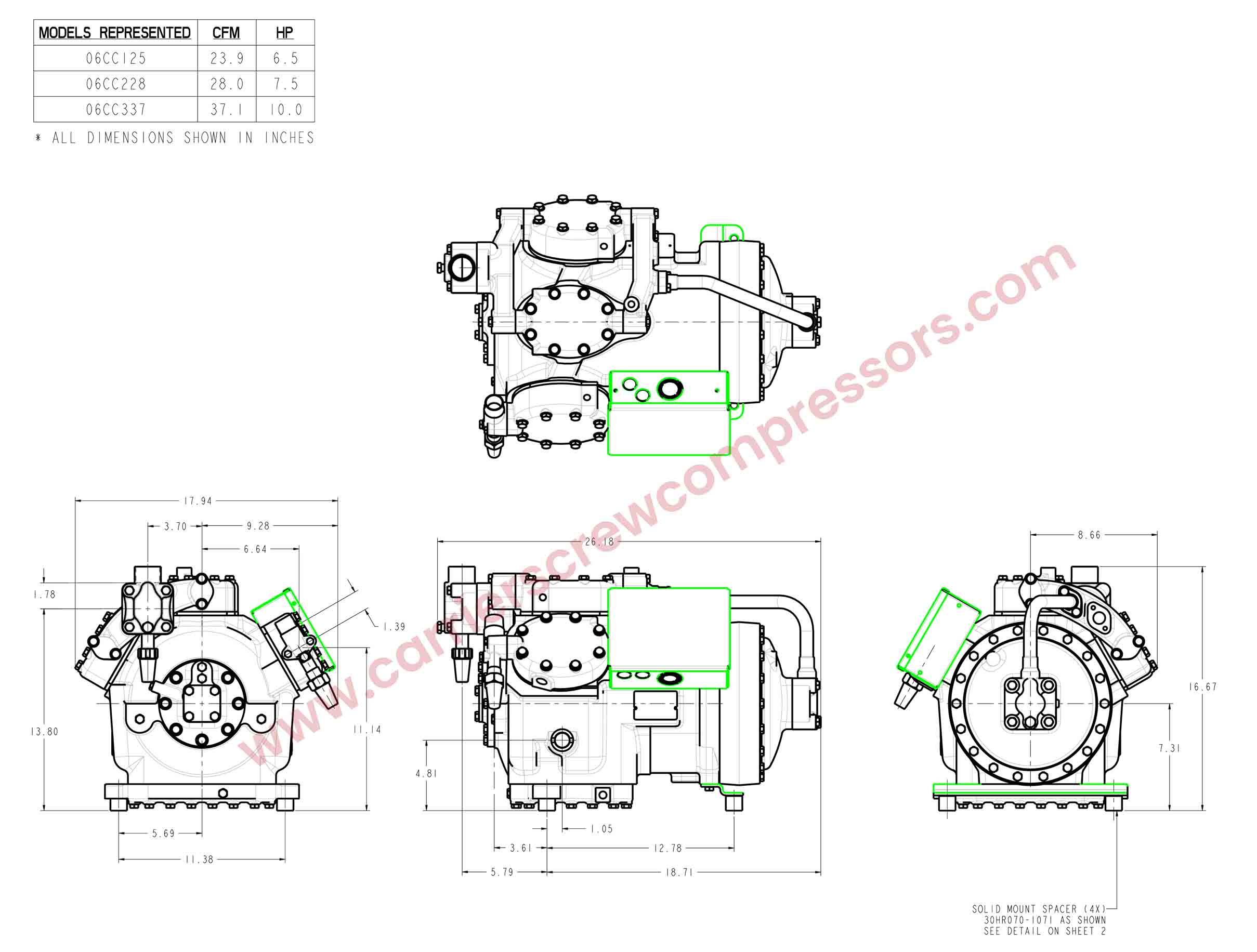

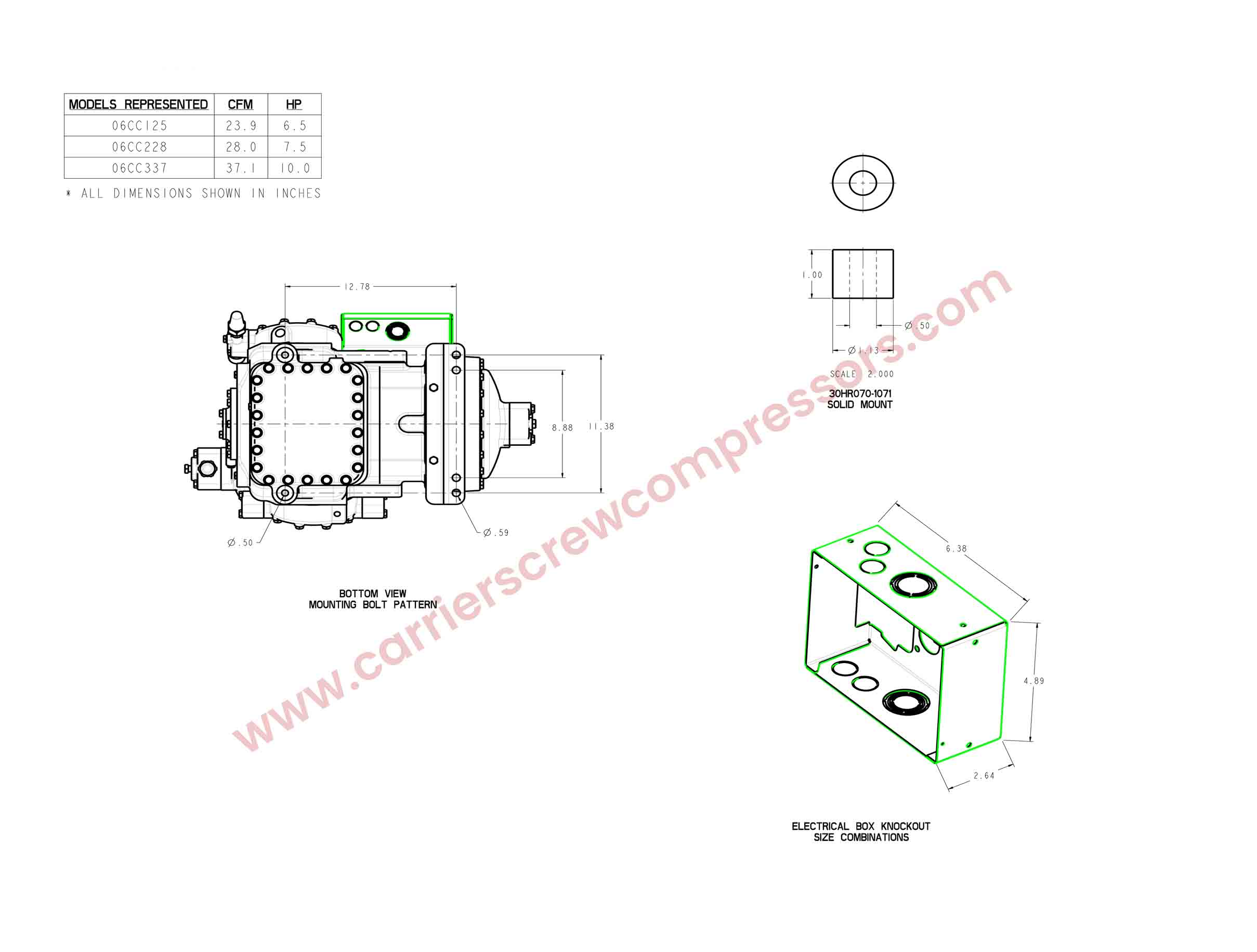

| 06CC125 | 06CY125 | 6.5 | 23.9 | 6 | 9.5 | 335 |
| 06CC228 | 06CY228 | 7.5 | 28 | 6 | 9.5 | 330 |
| 06CC337 | 06CY337 | 10 | 37.1 | 6 | 9.5 | 345 |
| 06CC550 | 06CY550 | 15 | 50.3 | 6 | 19 | 545 |
| 06CC665 | 06CY665 | 20 | 68.3 | 6 | 19 | 555 |
| 06CC675 | 06CY675 | 20 | 75.4 | 6 | 19 | 555 |
| 06CC899 | 06CY899 | 30 | 99 | 6 | 19 | 580 |
The narrow-seat valve design makes it the most efficient low temperature compressor in the maker for both HCFC and HFC applications from the 5HP to 30HP range. Compatible with HFC refrigerants and POE oil in single, multiplexed, and parallel system design configurations.
Compound Cooling, Two-Stage compressors are dedicated to low temperature applications, commonly operating down to -60°F (-51°C), and down to -100°F (-73°C) in special applications. The Two-Stage design allows for lower compression ratios which result in increased capacity, the application of smaller HP motors and lower applied costs.
Utilizing liquid subcooling minimizes liquid temperature fluctuation to TXVs on systems incorporating floating condensing temperatures.
Series : 06CC
HP : 5
kW : 3.7
CFM : 15.9
Series : 06CC
HP : 5
kW : 3.7
CFM : 15.9
Series : 06CC
HP : 5
kW : 3.7
CFM : 18.3
Series : 06CC
HP : 6 1/2
kW : 4.9
CFM : 23.9
Series : 06CC
HP : 6 1/2
kW : 4.9
CFM : 23.9
Series : 06CC
HP : 7 1/2
kW : 5.6
CFM : 28
Series : 06CC
HP : 10
kW : 7.5
CFM : 37.1
Series : 06CC
HP : 15
kW : 11.2
CFM : 50.3
Series : 06CC
HP : 20
kW : 14.9
CFM : 68.3
Series : 06CC
HP : 20
kW : 14.9
CFM : 75.4
Series : 06CC
HP : 30
kW : 22.4
CFM : 99.0
