Carrier Carlyle 06D/E Compressor

Reciprocating Compressor

Carlyle 06D/E semi-hermetic compressors are ideally suited for commercial refrigeration, air conditioning, process cooling, and environmental chambers. They are extremely flexible and may be used with many of the new HFC refrigerants such as R-507, R-404A, R-407C and R-134a, in addition to the conventional refrigerants (R-12, R-22, and R-502). The compressors may be operated at 50 or 60 hertz and are UL (Underwriters’ Laboratories), CSA (Canadian Standards Association), and ISO 9002 approved. Many of the prominent features of the 06D/E compressors are listed below.

Performance & Physical Data

Product Description

  • High Efficiency Valving System
  • Contoured Pistons and Vented Connecting Rods
  • Automatic Reversible High Flow Oil Pump
  • Oversize Oil Sump
  • High Efficiency Heavy Duty Motors
  • Suction Inlet Screen

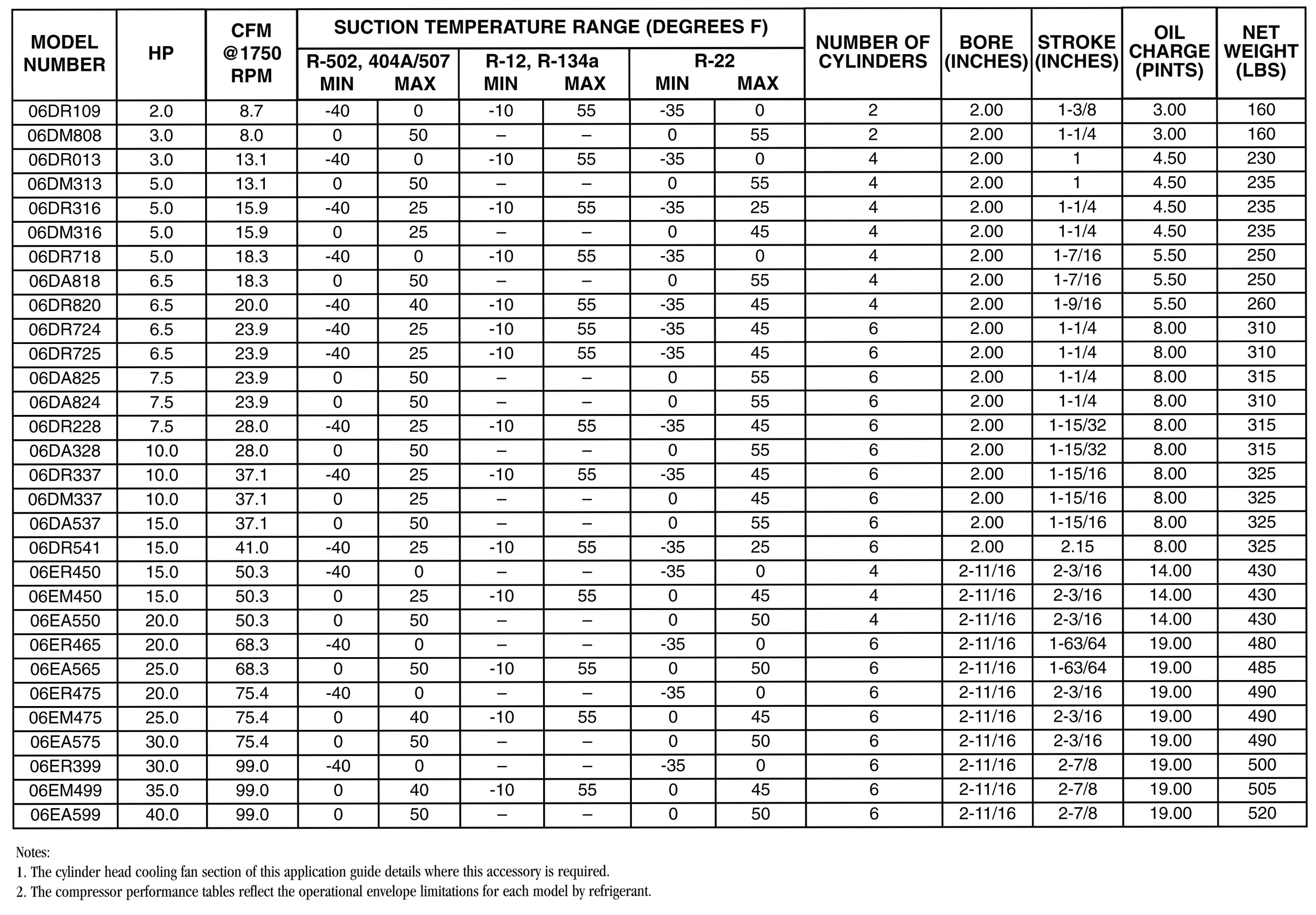

06D/E Compressor Specifications (60 Hz Units)

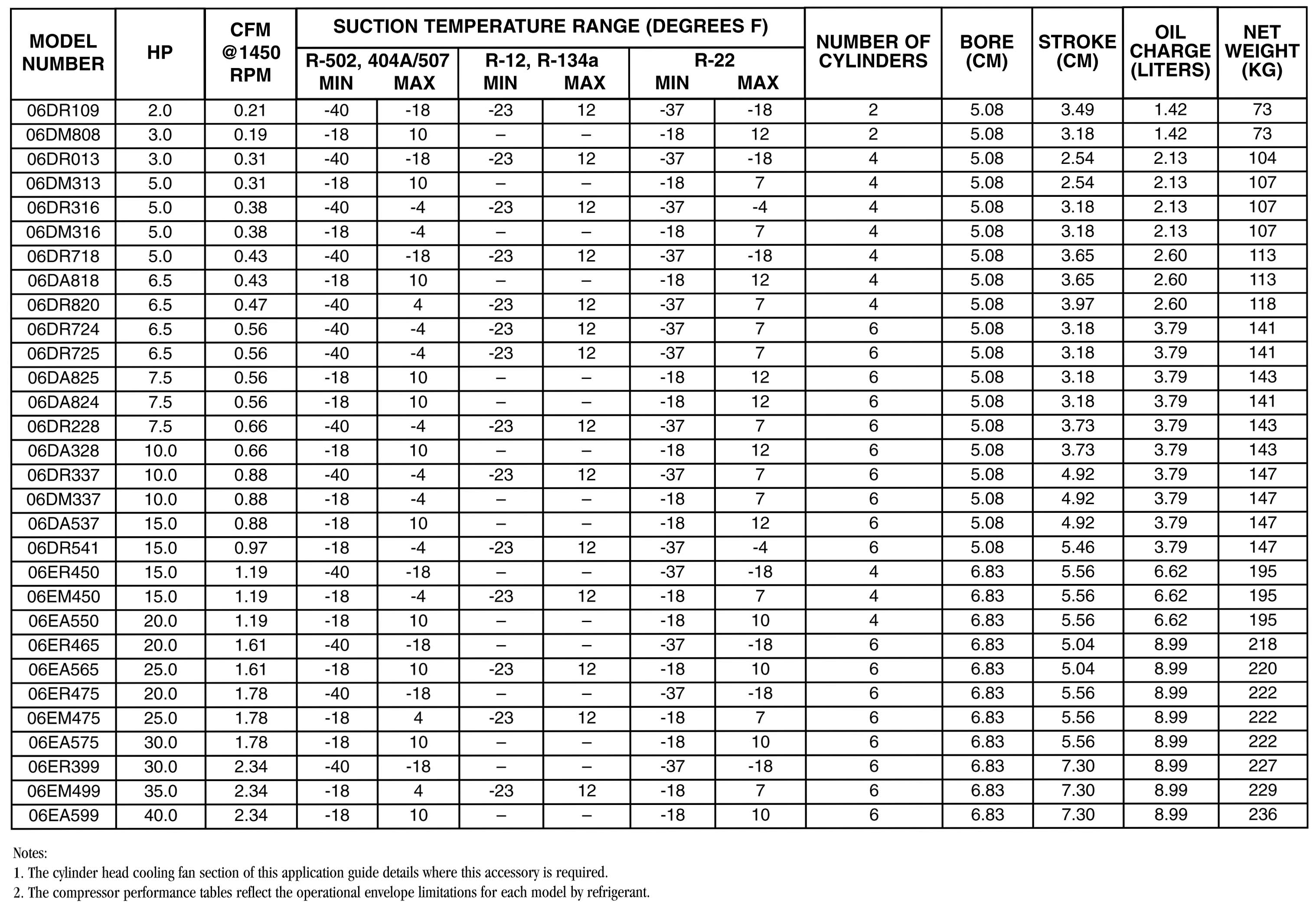

06D/E Compressor Specifications (50 Hz Units)

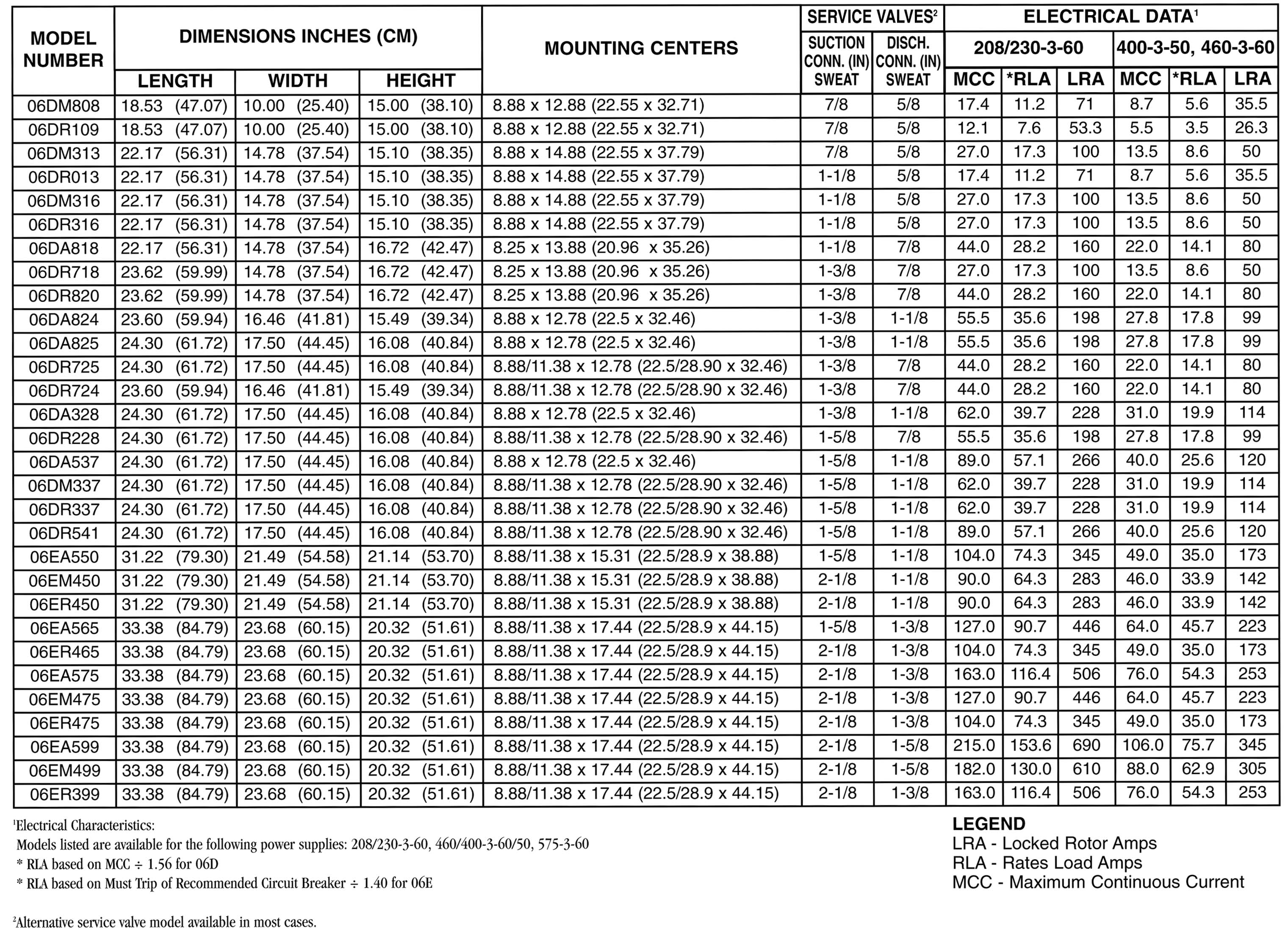

06D/E Drawing References

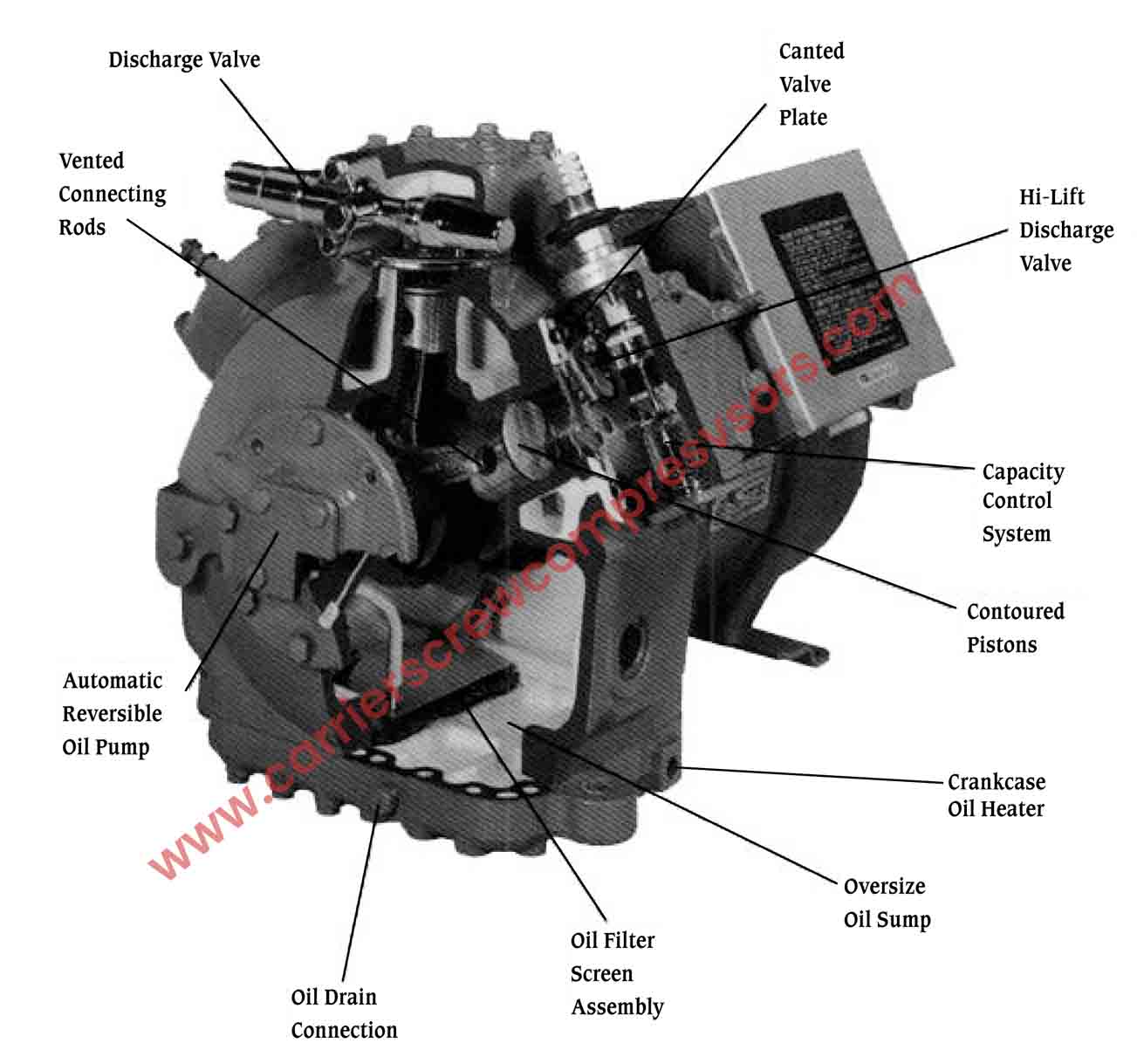

Carrier 06DE General Informations
