We Provides Compressor Units
Carlyle compressors consistently meet and exceed the demands of challenging environments, providing the most reliable refrigeration in the world.
3 to 15 Nominal HPModel | Nominal HP |
Displ.CFM | No. of Cylinders | Suction Line Size (in) | Discharge Line Size (in) | Shipping Weight (lbs) | Oil Charge (pints) |
---|---|---|---|---|---|---|---|

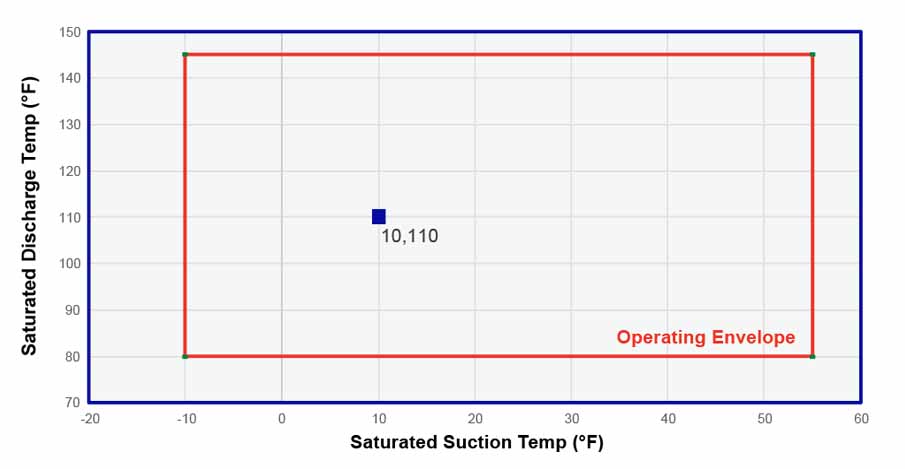

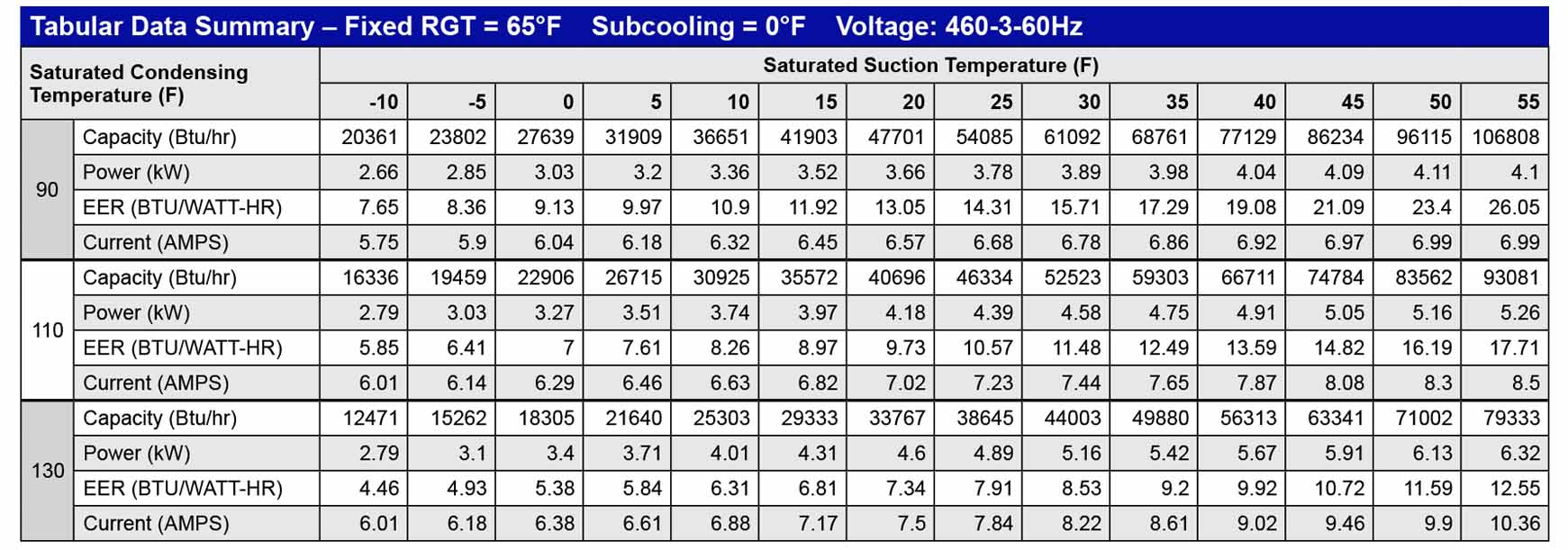

06DR820 (R134a) | 6.5 | 20 | 4 | 1 3/8 | 7/8 | 260 | 5 1/2 |

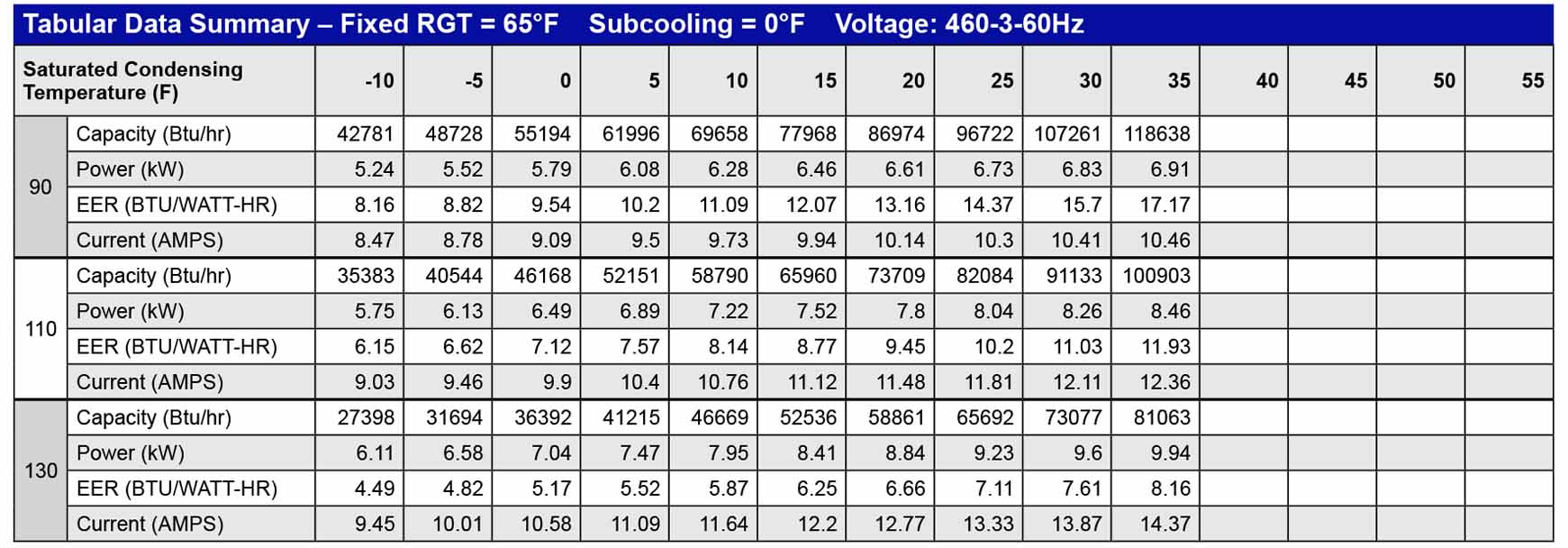

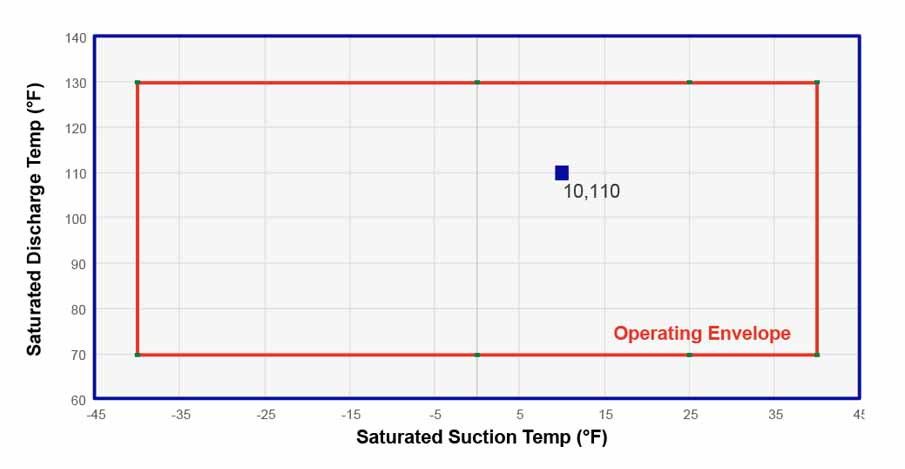

06DR820 (R404A/R507) | 6.5 | 20 | 4 | 1 3/8 | 7/8 | 260 | 5 1/2 |

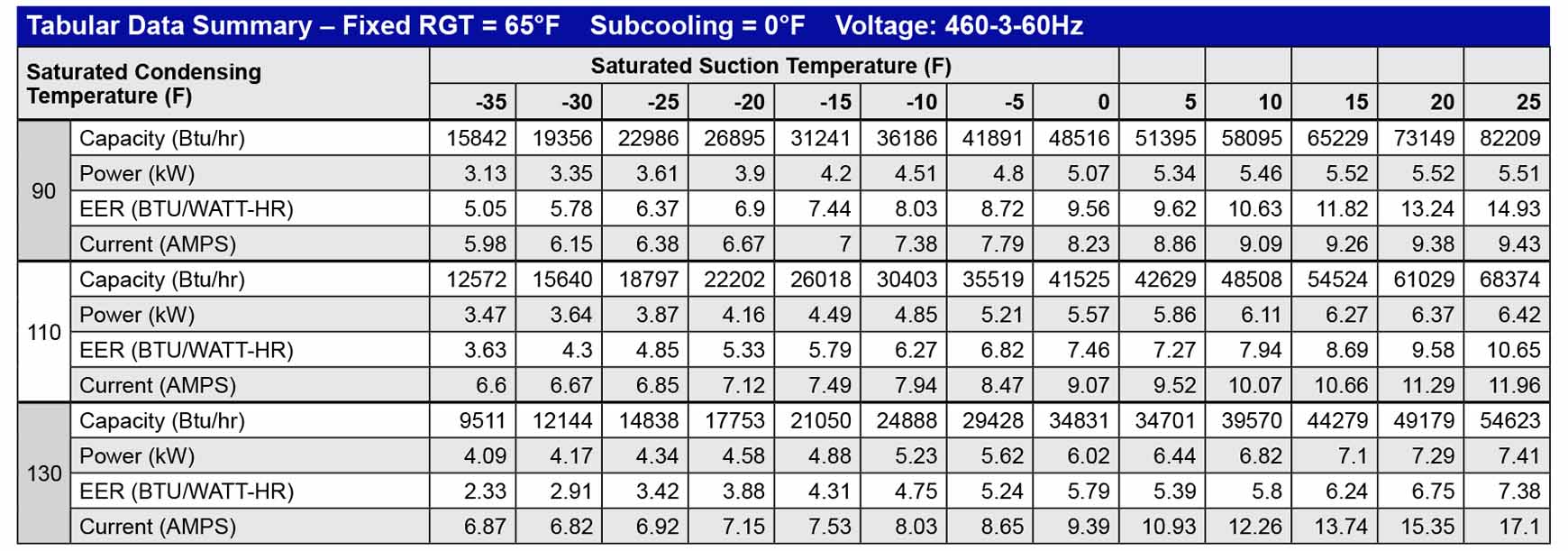

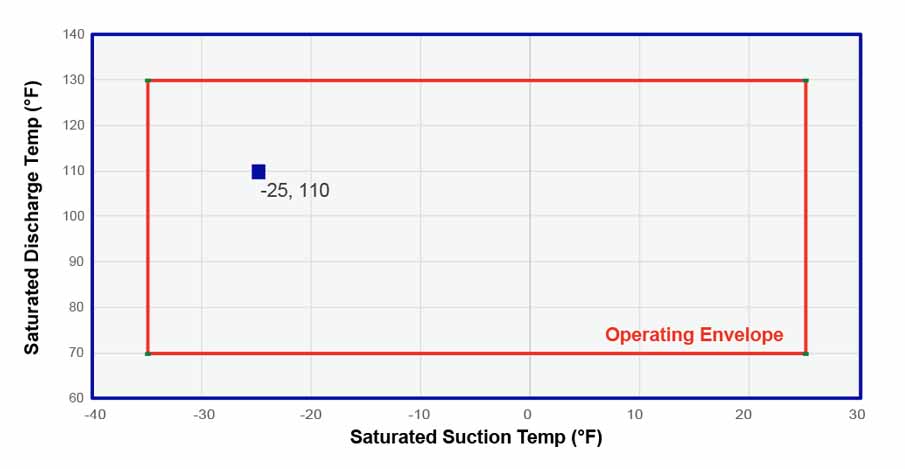

06DR820 (R407A) | 6.5 | 20 | 4 | 1 3/8 | 7/8 | 260 | 5 1/2 |
