06DR541 Carlyle Compressor

06D RECIPROCATING COMPRESSOR

Carrier Carlyle 06DR541 Compressor

Reciprocating Compressor

Carlyle compressors consistently meet and exceed the demands of challenging environments, providing the most reliable refrigeration in the world.

3 to 15 Nominal HP
8 to 41 Nominal Cfm
Available Voltages : 208/230-3-60, 460-3-60, 575-3-60

Physical Data

Model Nominal
HP		 Displ.CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DR541 (R134a) 10 37.1 6 1 5/8 1 1/8 325 8
06DR541 (R404A/R507) 10 37.1 6 1 5/8 1 1/8 325 8
06DR541 (R407A) 10 37.1 6 1 5/8 1 1/8 325 8

Product Description

  • Reciprocating compressors can be applied in high, medium, and low-temperature applications.
  • Carlyle compressors are working quietly and efficiently in supermarkets, computer rooms, manufacturing plants, on board ships and over the road.
  • We have applied our technological capabilities to bring you compressors that use alternative, environmentally safe refrigerants, while still meeting your need for reliable, efficient operation.

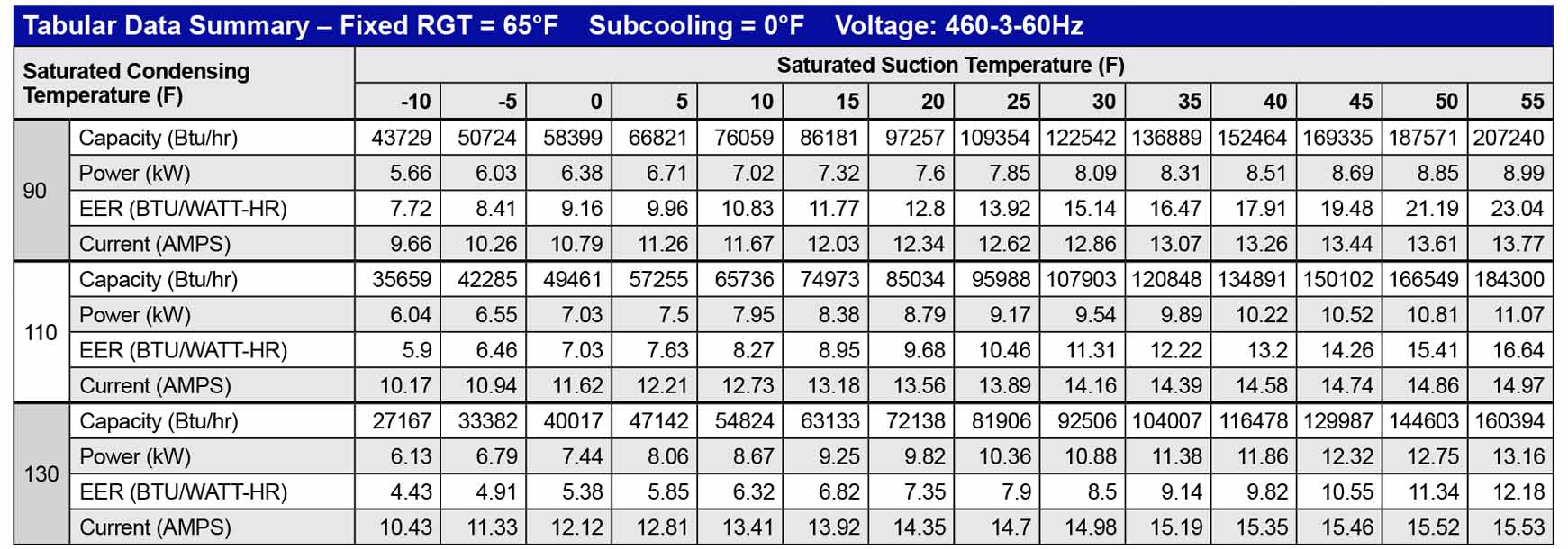

R134a - Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz

Carrier Carlyle 06DR541 R134a Compressor

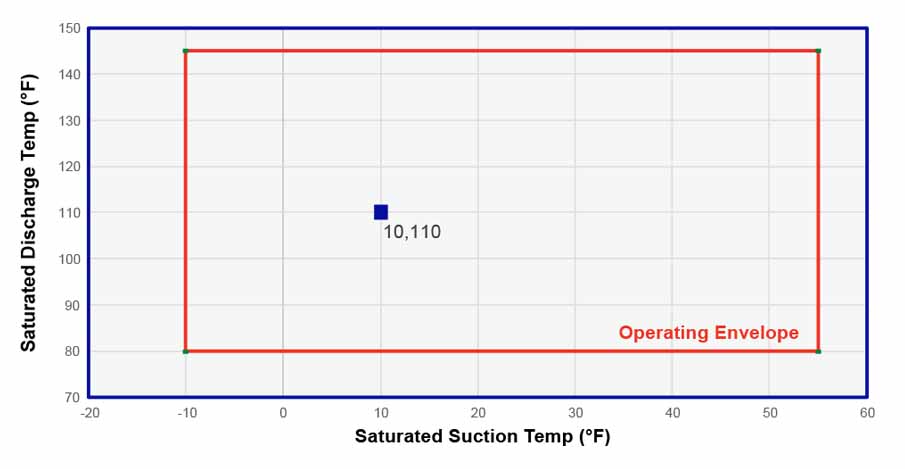

Carrier Carlyle 06DR541 R134a operating envelop

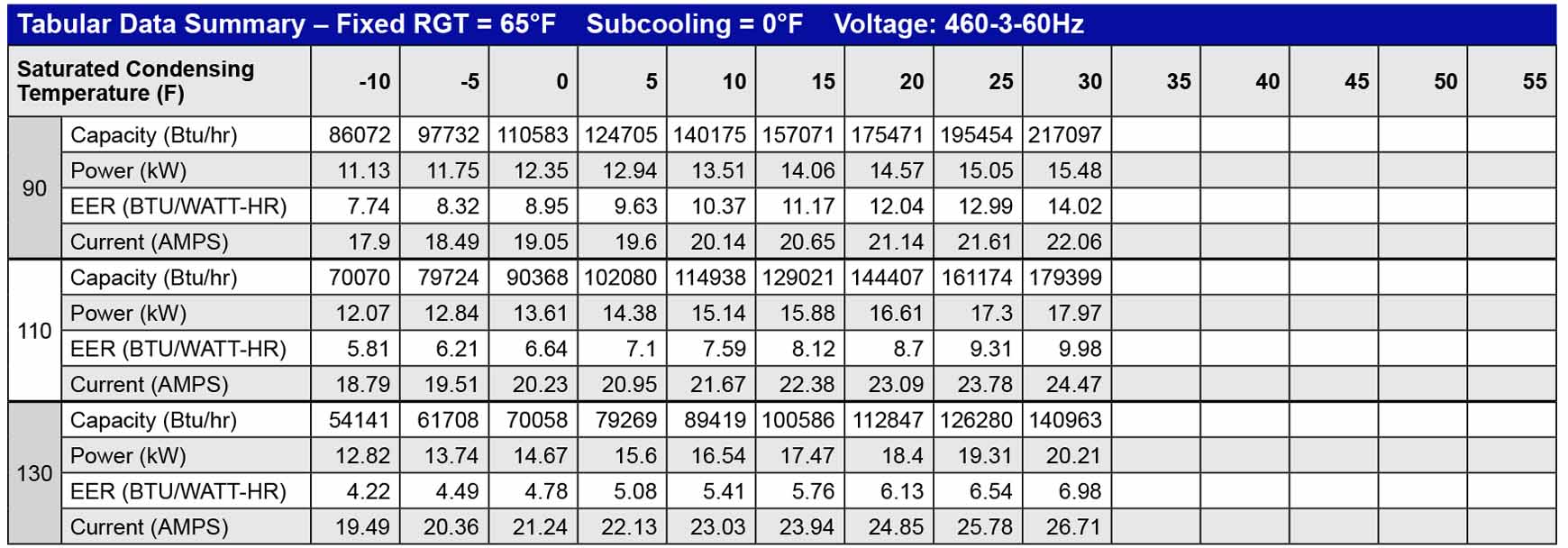

R404A/R507 - Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz

Carrier Carlyle 06DR541 Compressor R404A/R507

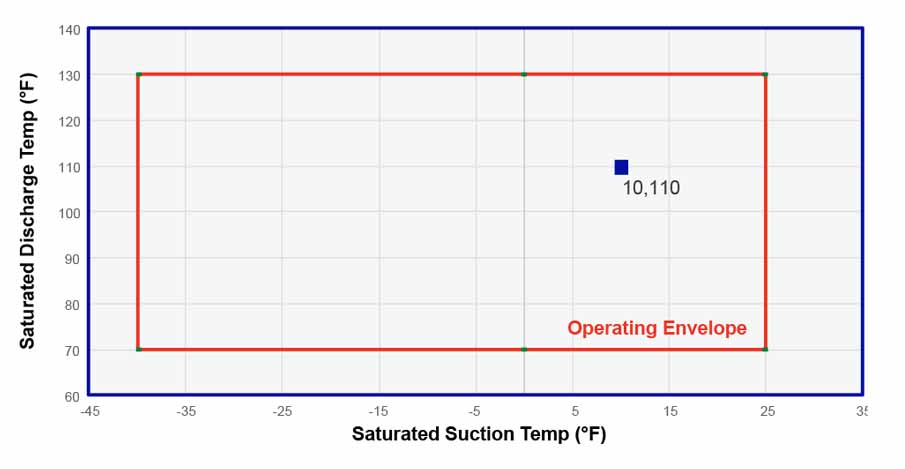

Carrier Carlyle 06DR541 operating envelop R404A/R507

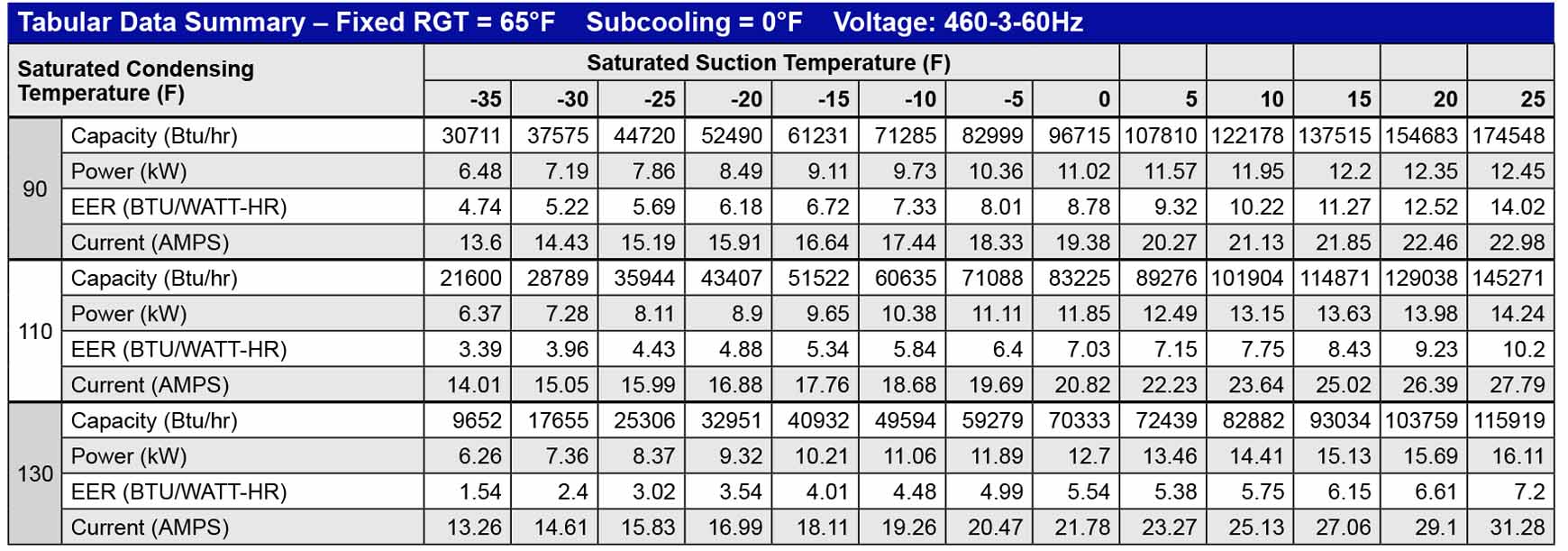

R407A - Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz

Carrier Carlyle 06DR541 Compressor R407A

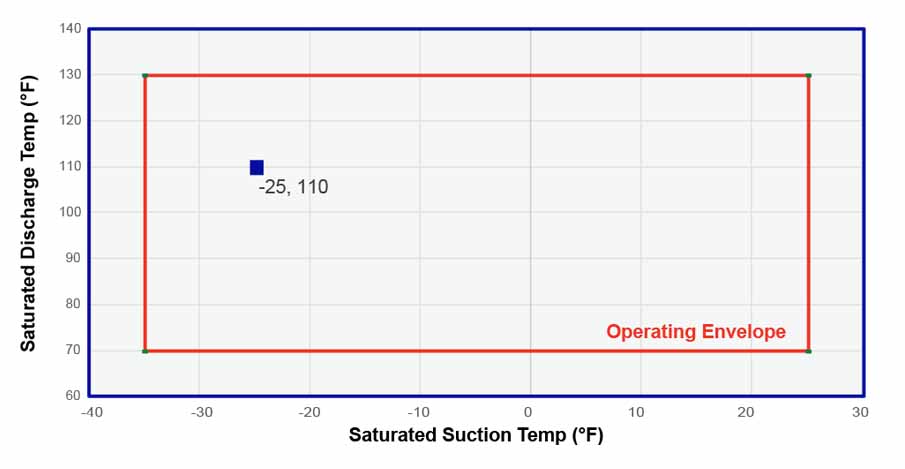

Carrier Carlyle 06DR541 operating envelop R407A

Drawings

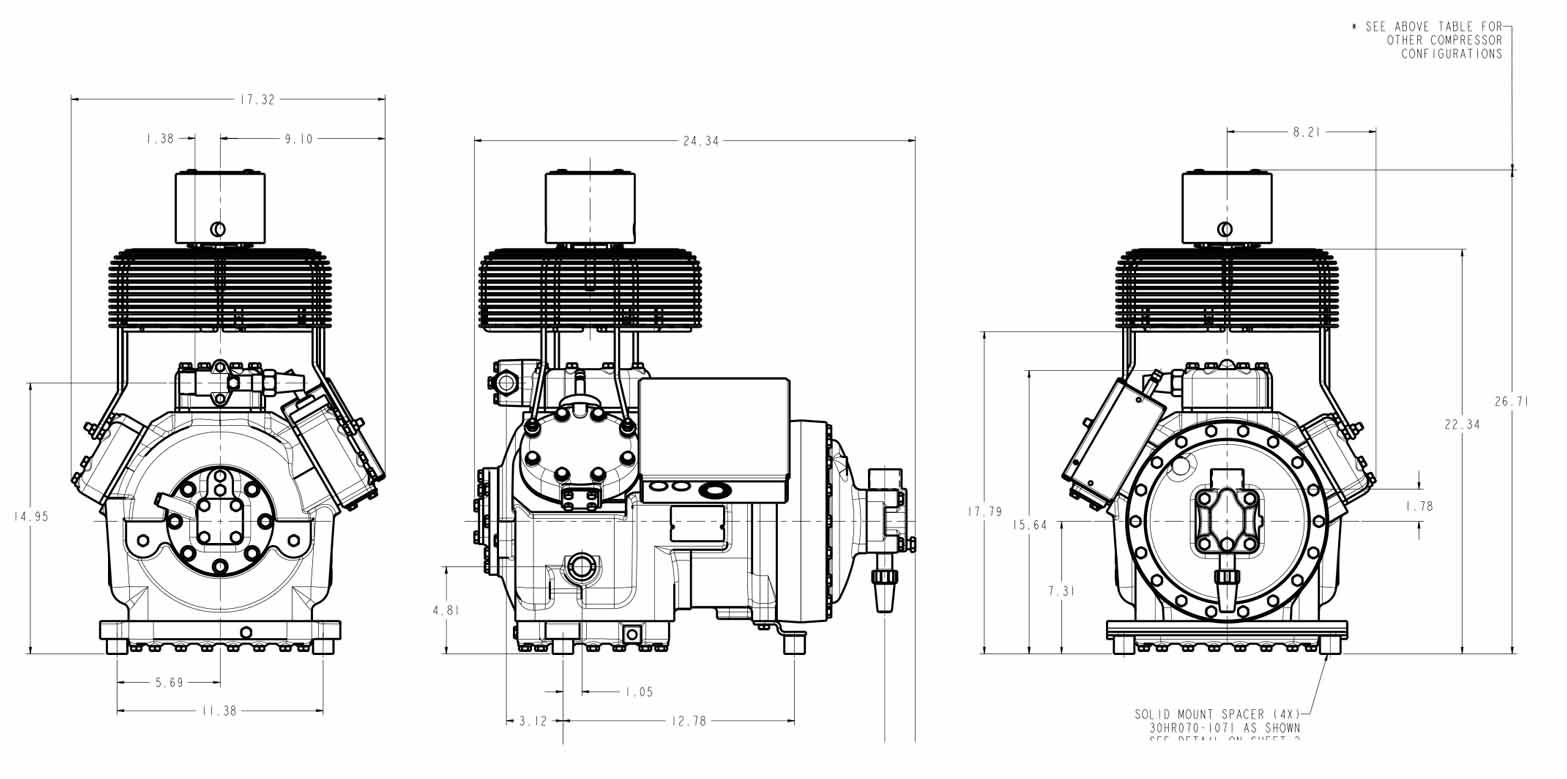

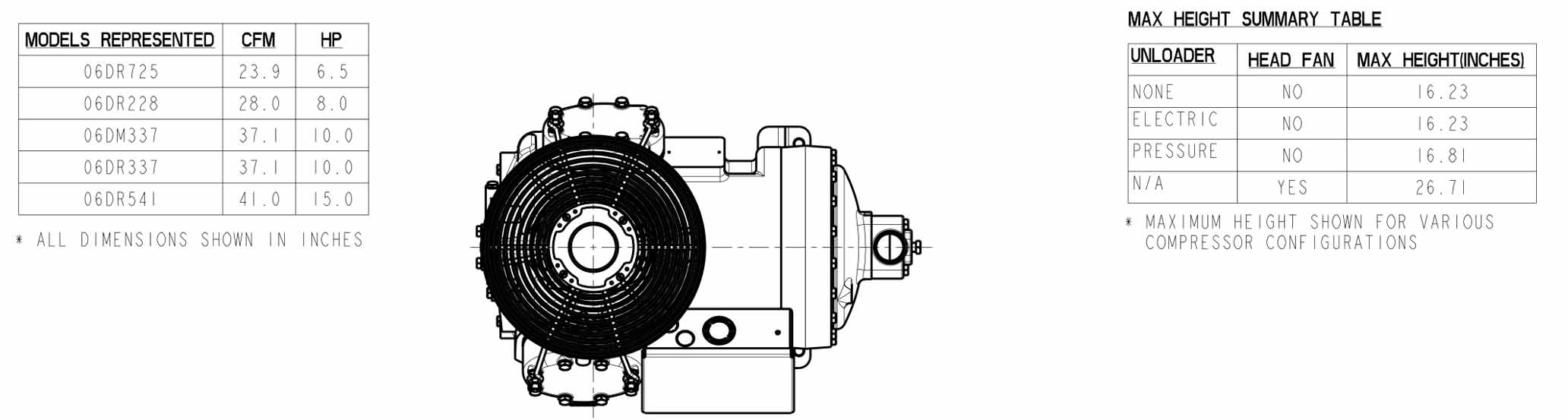

Carrier Carlyle 06DR541 drawings
Carrier Carlyle 06DR541 drawings
