06DR013 Carlyle Compressor

06D RECIPROCATING COMPRESSOR

Carrier Carlyle 06DR013 Compressor

Reciprocating Compressor

Carlyle compressors consistently meet and exceed the demands of challenging environments, providing the most reliable refrigeration in the world.

3 to 15 Nominal HP
8 to 41 Nominal Cfm
Available Voltages : 208/230-3-60, 460-3-60, 575-3-60

Physical Data

Model Nominal
HP		 Displ.CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DR013 3 13 4 1 1/8 5/8 230 4 1/2

Product Description

  • Reciprocating compressors can be applied in high, medium, and low-temperature applications.
  • Carlyle compressors are working quietly and efficiently in supermarkets, computer rooms, manufacturing plants, on board ships and over the road.
  • We have applied our technological capabilities to bring you compressors that use alternative, environmentally safe refrigerants, while still meeting your need for reliable, efficient operation.

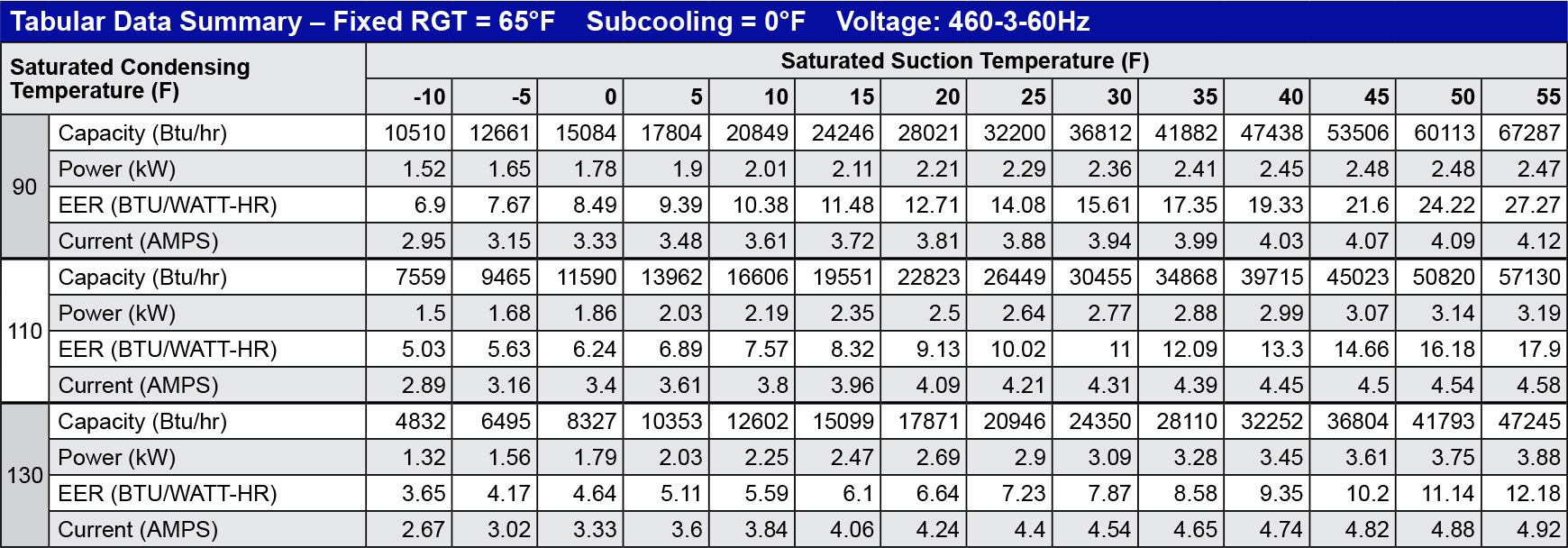

R134a - Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz

Carrier Carlyle 06DR013 Compressor

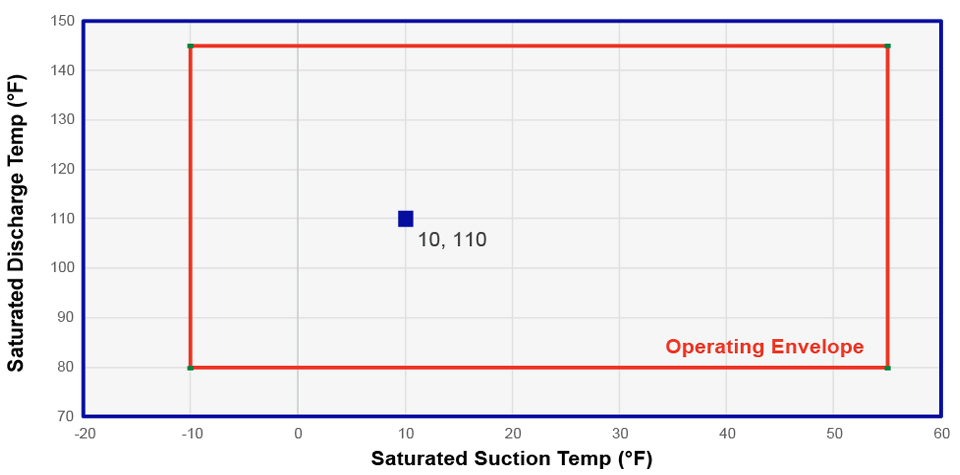

Carrier Carlyle 06DR013 operating envelop

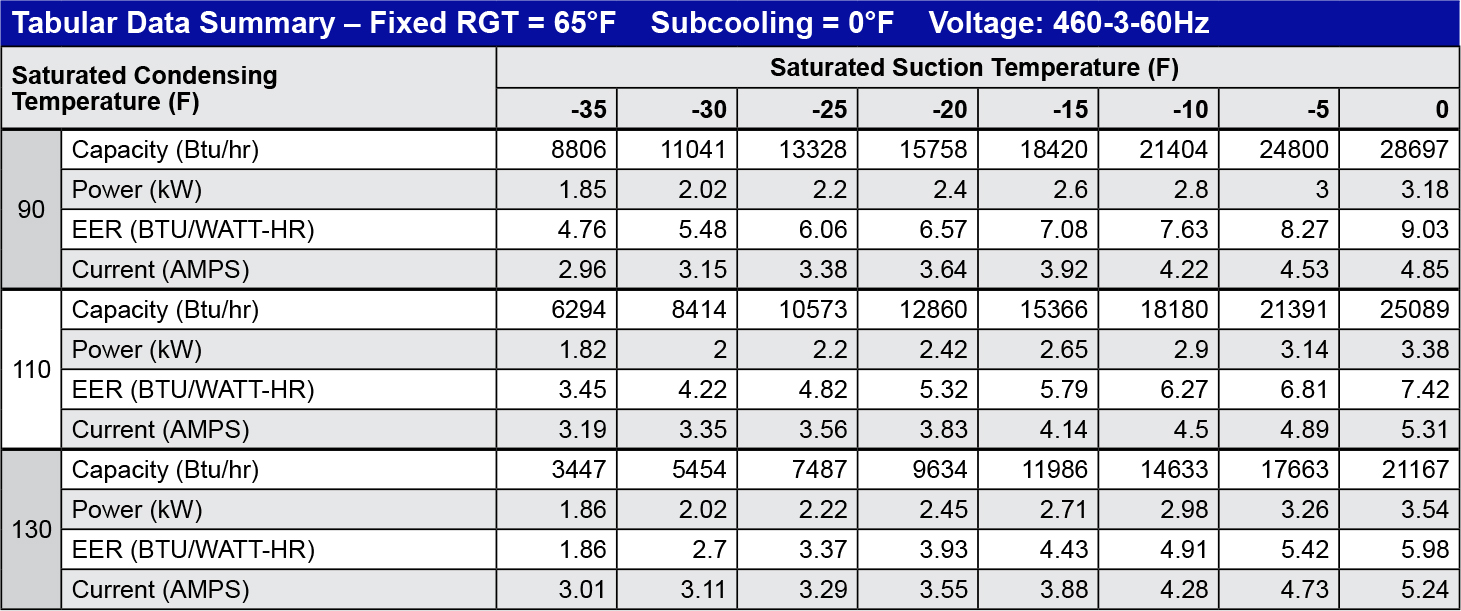

R407A - Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz

Carrier Carlyle 06DR013 Compressor R407A

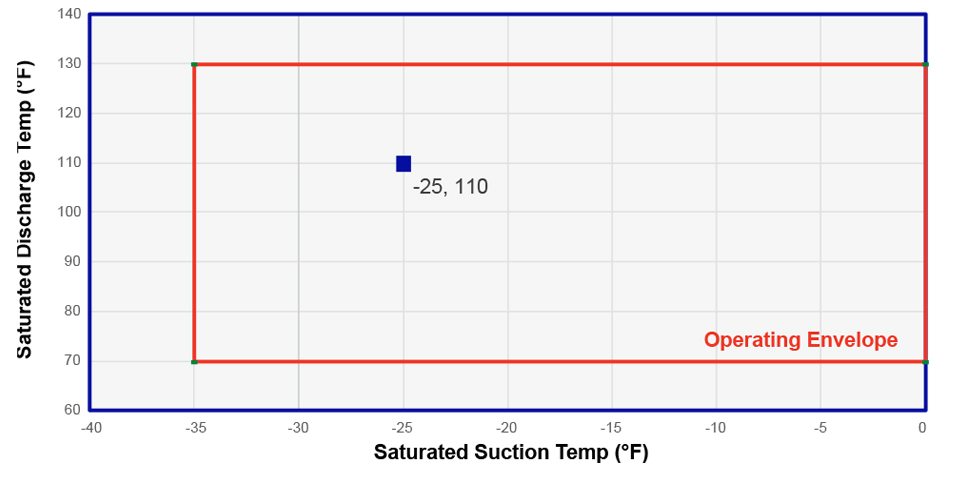

Carrier Carlyle 06DR013 operating envelop R407A

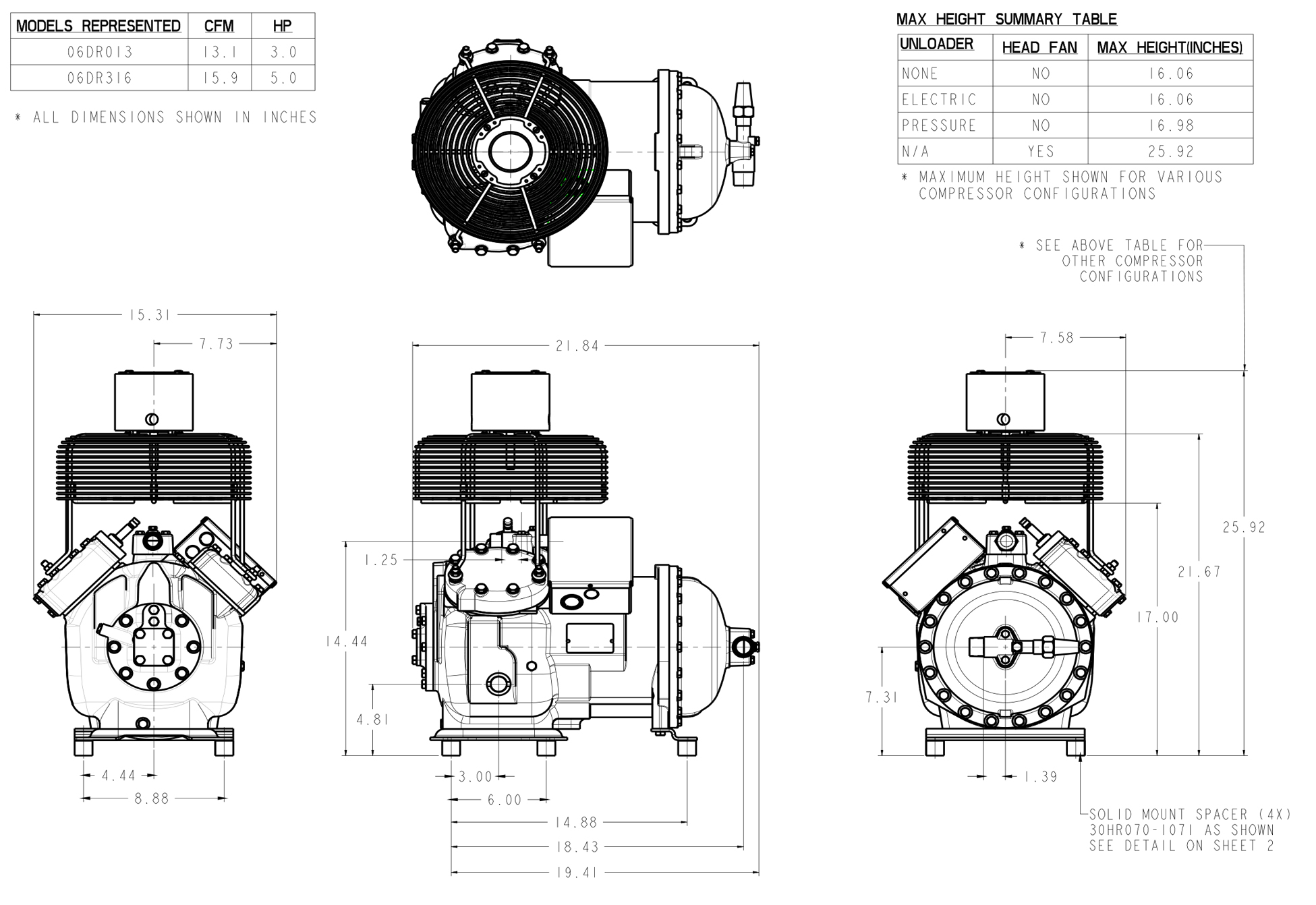

Drawings

Carrier Carlyle 06DR013 drawings
