Features

• Superior efficiency significantly reduces horsepower drain, reduces maintenance, extends life, saves fuel.
• Exclusive balanced cylinder design minimizes torque pulsations for smoother operation, less wear.
• Extended maintenance, lower operating speeds, lower vibrations, and less wear mean less maintenance and lower operating costs.
• Larger capacity self-priming, reversible oil pump provides dependable oil flow under cold or flooded startup conditions and ample pressure at low rpm.
• Higher capacity, efficiency at speeds at least 30% lower.
• Housing-mounted clutch and larger clutch bearing provide longer life.
• Low oil-circulation rate of less than 1% for greater operating efficiency.

OTHER 05K MODELS

05K-24

Reciprocating Compressor

Displacement : 400 cc (24.4 in3)
No. Cylinders : 4
Weight : 49 kg (108 lbs)
cfm : 24

Download

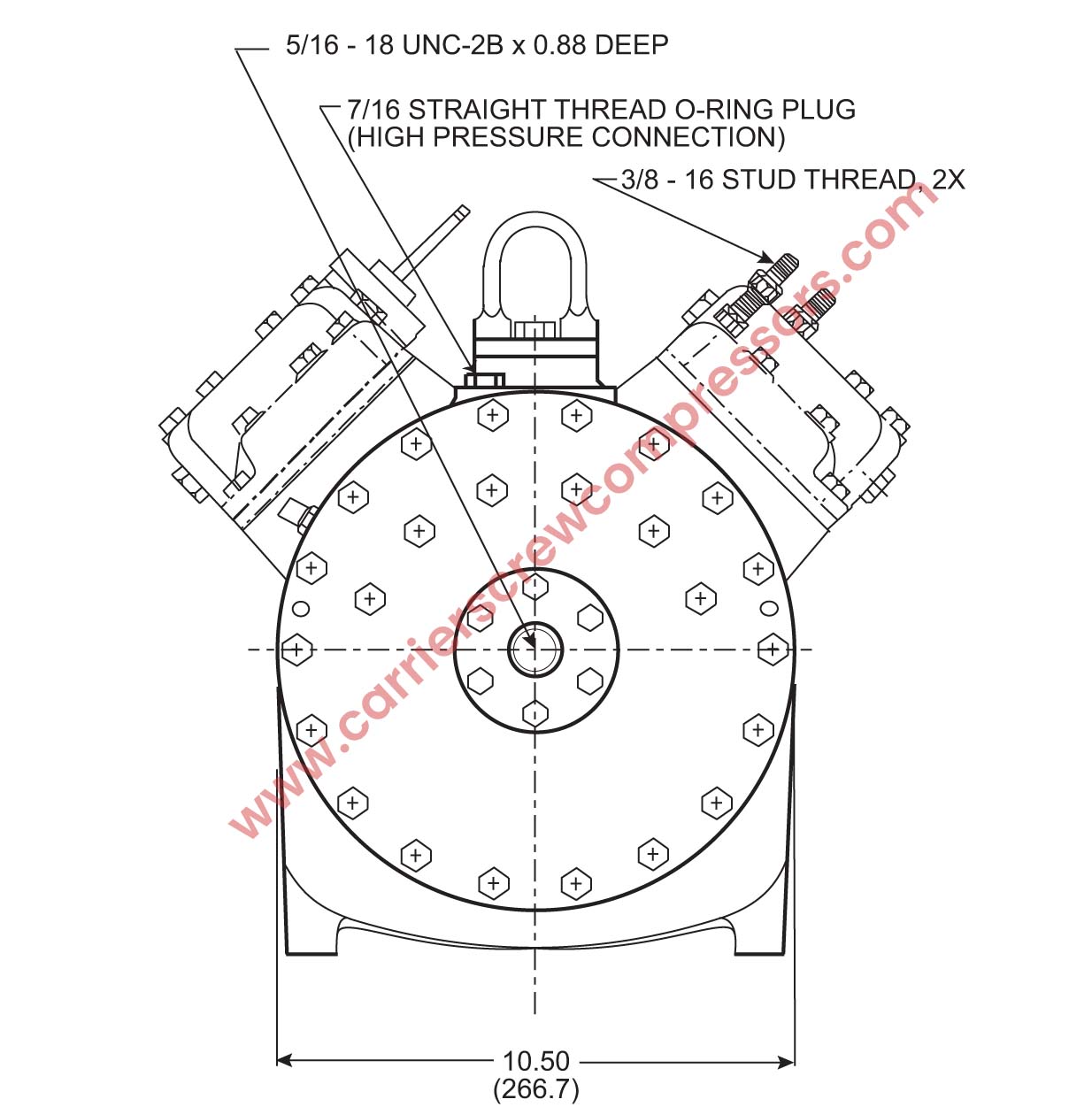

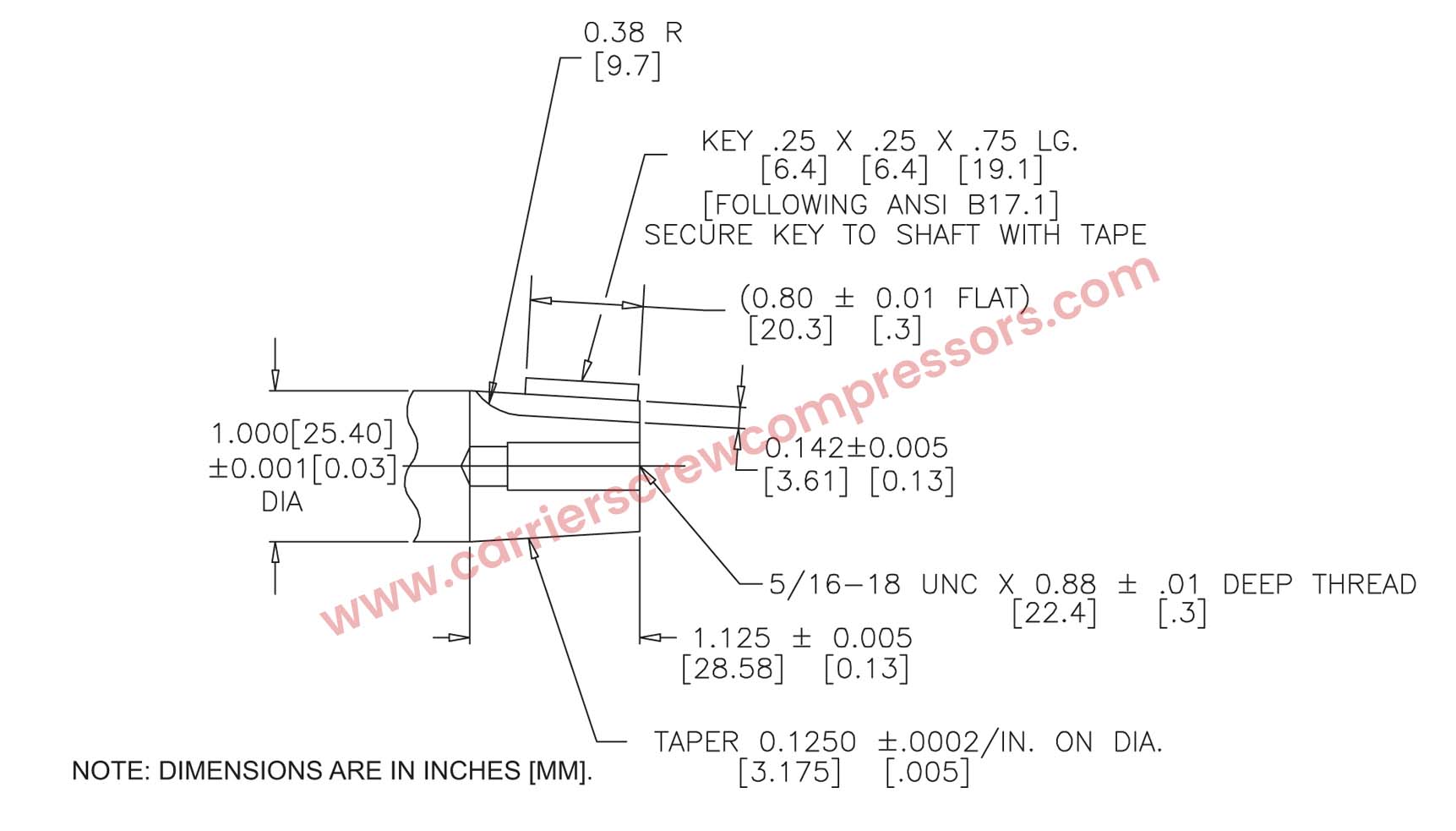

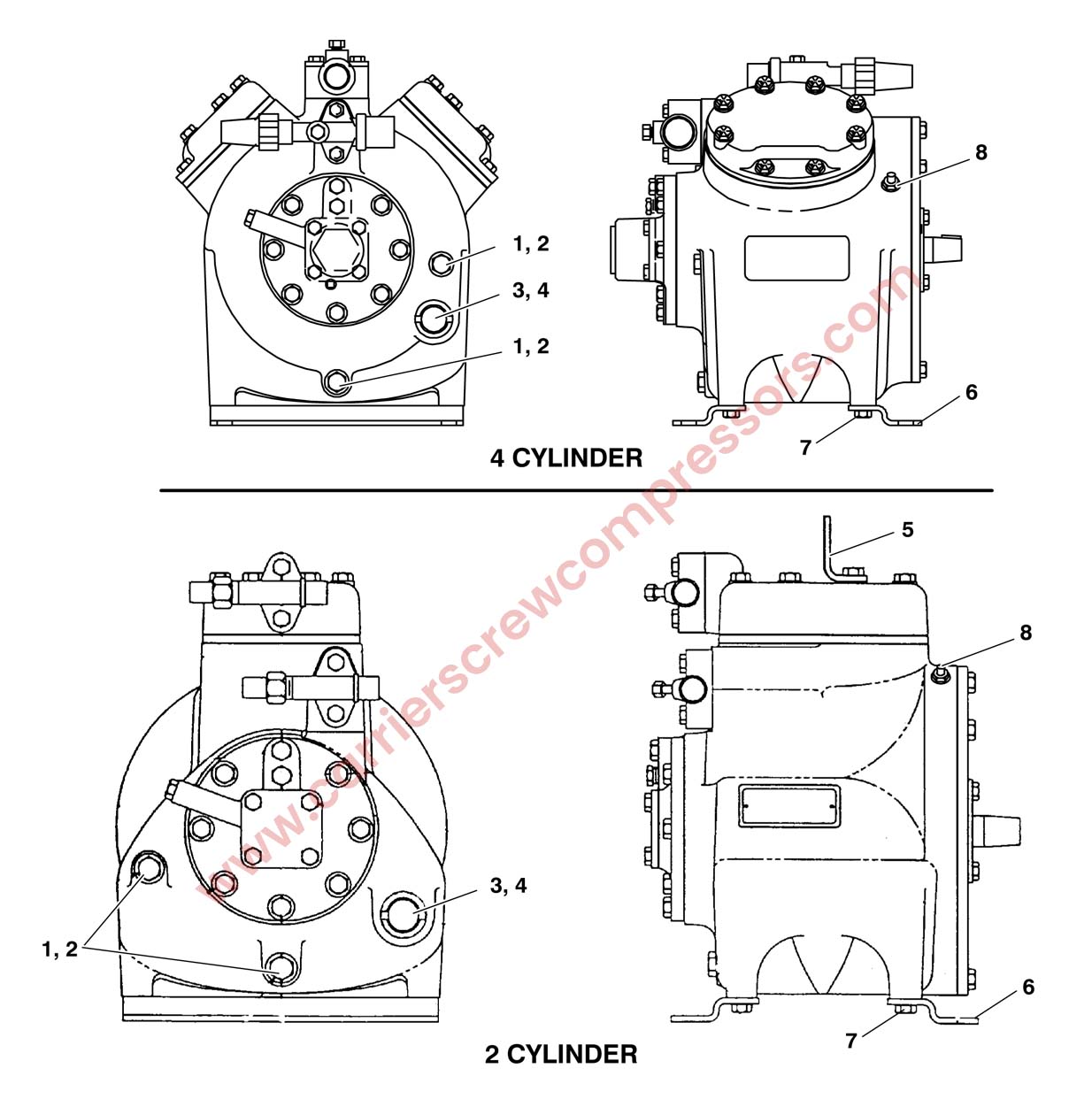

05K Drawing References
