06M Compressor

HVAC and Refigeration Compressors

Carrier Carlyle 06M Compressor

Reciprocating Compressor

Semi-Hermetic
12 to 20 Nominal HP
15.5 to 24.1 Nominal Cfm

Performance & Physical Data

Models Airflow (cfm) Number of Cylinders Nominal HP Suction Line Size Discharge Line Size Dry Weight (lbs) Oil Charge (pints)
06MM015 15.5 3 7 1-1/8” 7/8” 379 5.8
06MM018 18.4 3 9 1-1/8” 7/8” 384 5.8
06MM021 21.2 3 11 1-3/8” 1-1/8” 387 5.8
06MM024 24.1 3 13 1-3/8” 1-1/8” 392 5.8
06MA015 15.5 3 9 1-1/8” 7/8” 379 5.8
06MA018 18.4 3 11 1-1/8” 7/8” 384 5.8
06MA021 21.2 3 13 1-3/8” 1-1/8” 387 5.8
06MA024 24.1 3 15 1-3/8” 1-1/8” 392 5.8

Product Description

  • Designed specifically for R410A.
  • Same high standards as the 06D and 06E compressors.
  • New factory installed compressor protection module replacing external overloads and calibrated circuit breakers.
  • Designed for wide variable speed range.
  • Suction cut-off and SMART unloading capacity control capable.
  • Serviceability – motor, valve plate, terminal plate, terminal box, oil pump field replaceable.
  • Motor protection upgrade option – Sentinel. Diagnostic software provides motor trend data and fault codes.
  • Smaller installation footprint – 4” narrower then the 06D compressor.

OTHER 06M MODELS


Carrier Carlyle 06MM015 Compressor

06MM015

Reciprocating Compressor

CFM : 15.5
Cylinders : 3
HP : 7
Weight : 379 lbs

Carrier Carlyle 06MM018 Compressor

06MM018

Reciprocating Compressor

CFM : 18.4
Cylinders : 3
HP : 9
Weight : 384 lbs

Carrier Carlyle 06MM021 Compressor

06MM021

Reciprocating Compressor

CFM : 21.2
Cylinders : 3
HP : 11
Weight : 387 lbs

Carrier Carlyle 06MM024 Compressor

06MM024

Reciprocating Compressor

CFM : 24.1
Cylinders : 3
HP : 13
Weight : 392 lbs

Carrier Carlyle 06MM024 Compressor

06MM024

Reciprocating Compressor

CFM : 24.1
Cylinders : 3
HP : 13
Weight : 392 lbs

Carrier Carlyle 06MA015 Compressor

06MA015

Reciprocating Compressor

CFM : 15.5
Cylinders : 3
HP : 9
Weight : 379 lbs

Carrier Carlyle 06MA018 Compressor

06MA018

Reciprocating Compressor

CFM : 18.4
Cylinders : 3
HP : 11
Weight : 384 lbs

Carrier Carlyle 06MA021 Compressor

06MA021

Reciprocating Compressor

CFM : 21.2
Cylinders : 3
HP : 13
Weight : 387 lbs

Carrier Carlyle 06MA024 Compressor

06MA024

Reciprocating Compressor

CFM : 24.1
Cylinders : 3
HP : 15
Weight : 392 lbs

06M Application Drawing

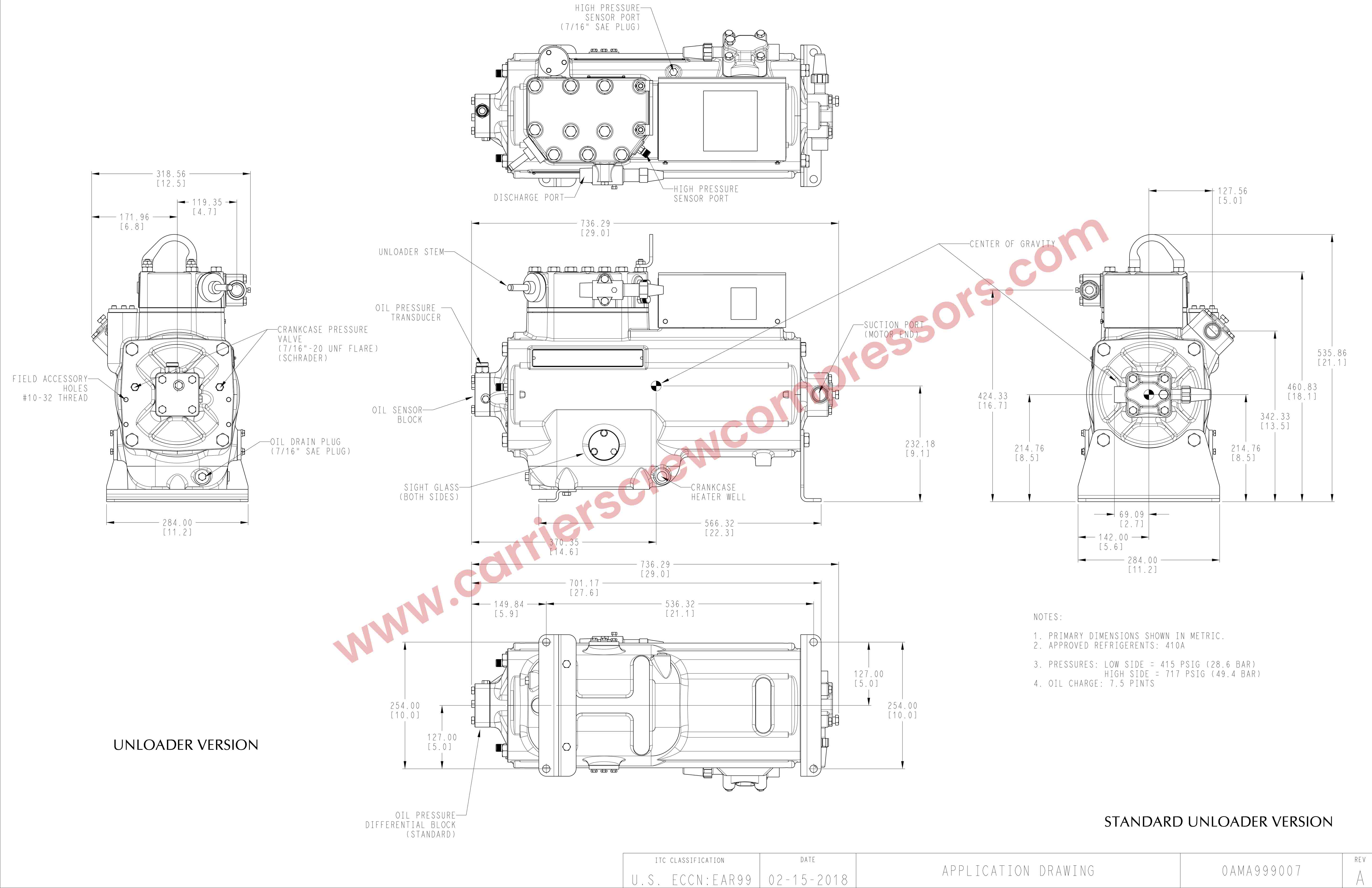

Carrier 06M Application Drawing

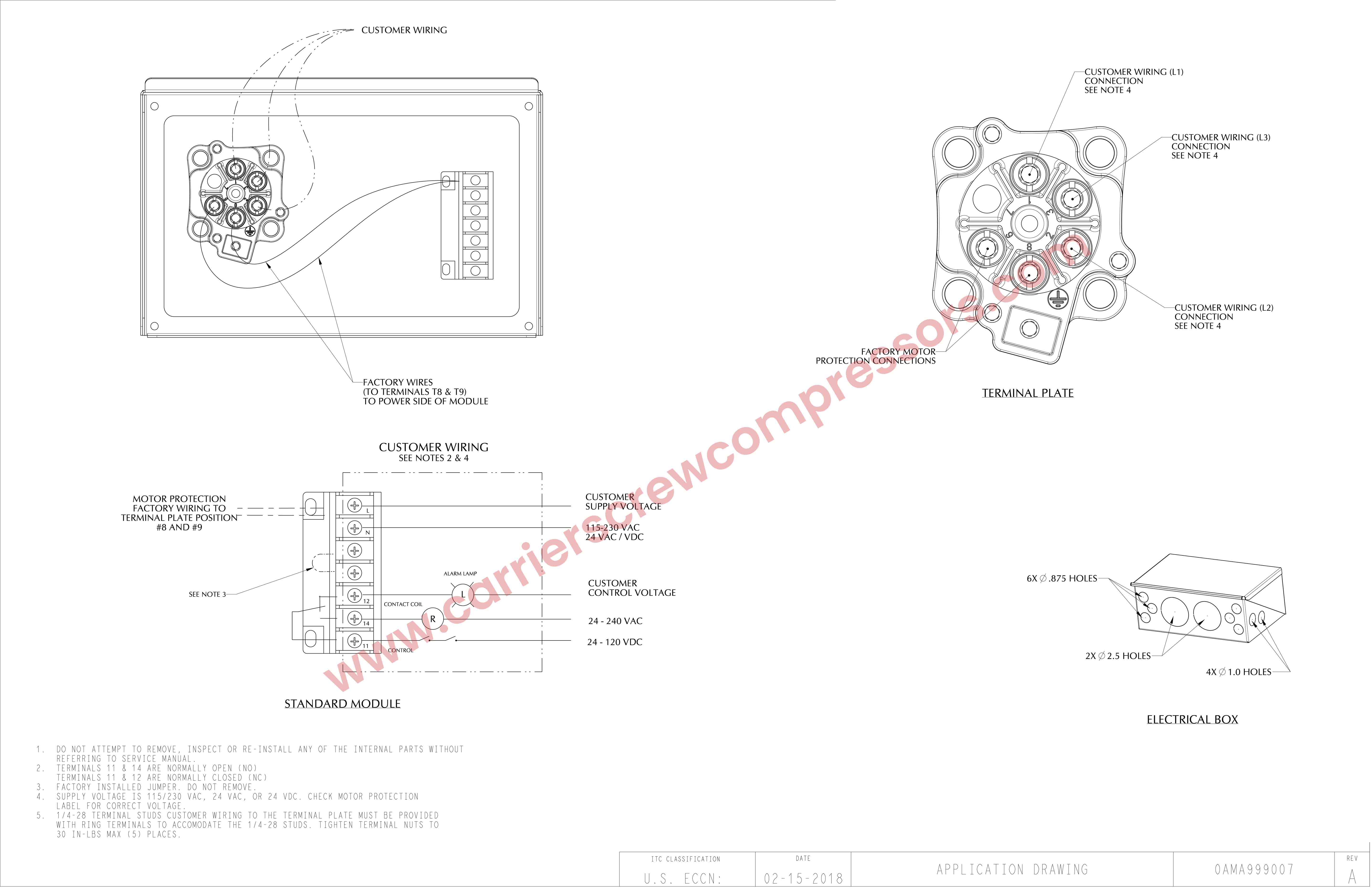

Carrier 06M Application Drawing

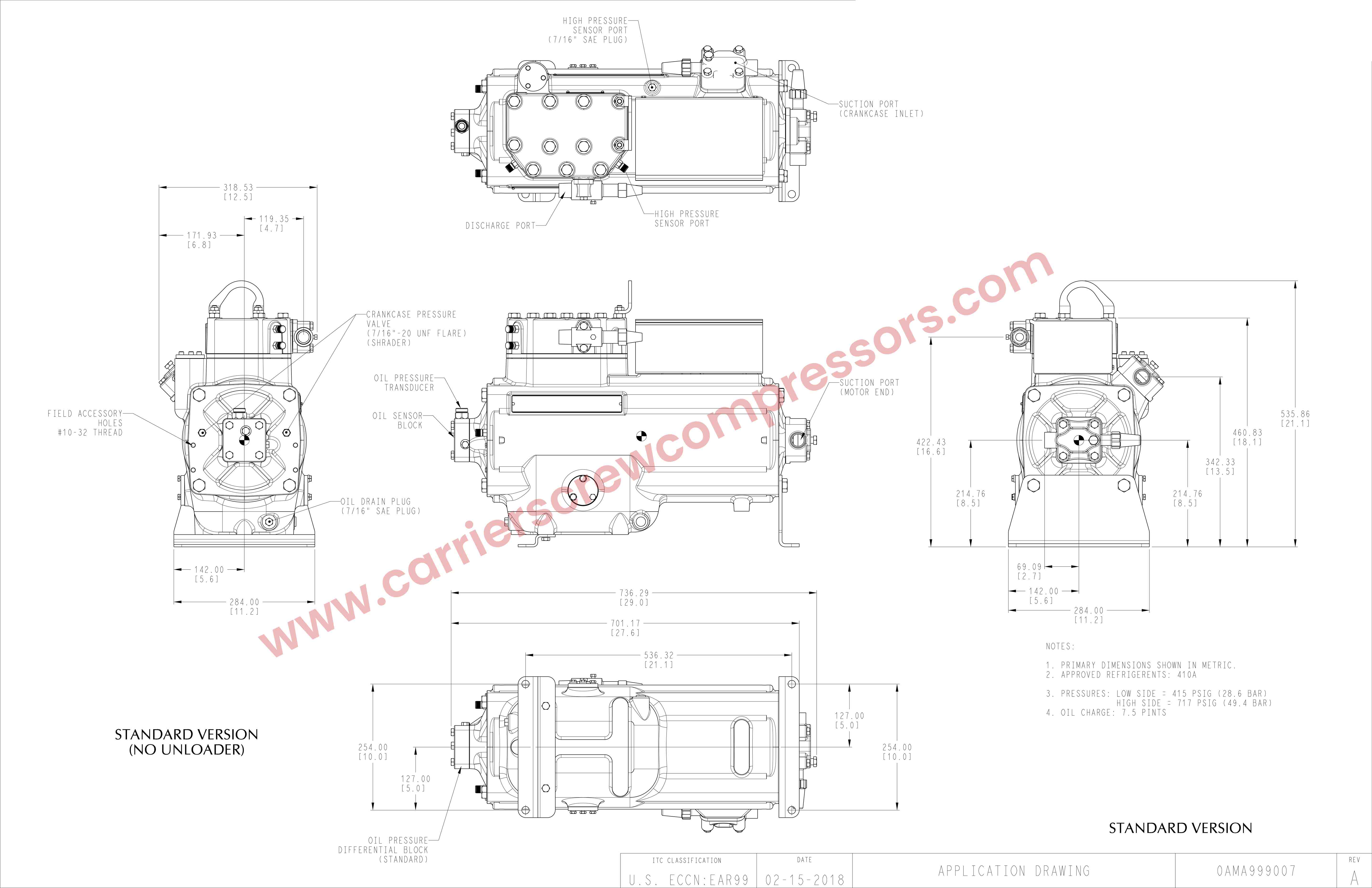

Carrier 06M Application Drawing
